Description:
Italian Sliding Gate Motor Beninca BULL424 SW 24V 450kg- Motor kit

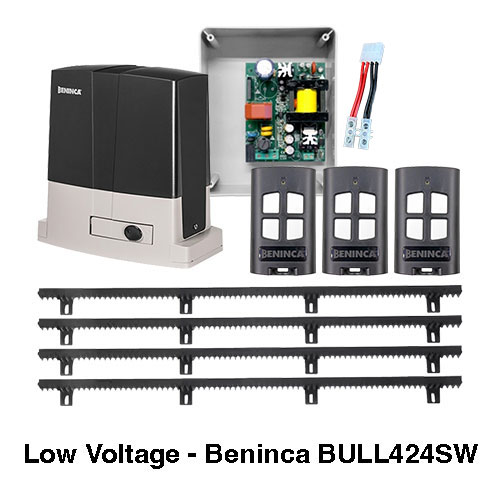

Kit Includes:
Beninca 424SW x 1
Beninca Low Voltage Box and adapter x 1
Beninca Remotes x 3
Lugs down nylon racks x 4
The BULL424SW is a 24 volt motor
designed for residential and commercial sliding gates up to 450kg in
weight.
24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG
The BULL424SW by Beninca is plain and
simple Beninca quality and reliability throughout. The BULL424SW is
designed for residential and commercial sliding automatic gates up to
450kg in weight.
The BULL424SW has a built in control board in its own seperate enclosure
with a dedicated 433mhz wireless receiver and inputs for photocells and
switches etc. The BULL also comes with a base plate. Battery backup is
optional with the addition of the battery module and two 1.3Ah
rechargeable batteries.
Motor Voltage - 24 volts DC
Current Standby - 8mA
Current at use - 3.2A
Motor power - 80W
Maximum thrust - 428N
Operating speed - 11 metres per minute (adjustable)
Maximum gate size - 450 kg
Duty cycle - 80%
Height - 330mm Width - 326mm Depth - 140mm
Weight - 7.6 Kg
IP rating - IP44
Additional information
| Weight | 15 kg |
|---|---|
| Motor Voltage | 24 volts DC |
| Standby Current | 8mA |
| Maximum Current | 0.4A |
| Motor Power | 80W |
| Maximum Thrust | 428N |
| Operating Speed | 11 Metres per minute |
| Maximum Gate Weight | 400 Kg |
| IP Rating | IP44 |
| Height (mm) | 330mm |
| Width (mm) | 140mm |
| Length (mm) | 326mm |
| Weight (kg) | 10.2 Kg |
| Duty Cycle | 80% |
