Description:

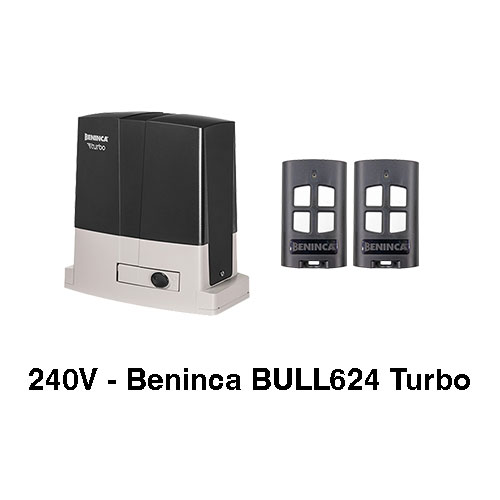

Italian Sliding Gate Motor Beninca BULL624 TURBO 24V 600kg
Max Speed: 25m/min
| Power supply | 115 Vac / 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 5 / 3 A |
| Maximum thrust | 330 N |
| Opening speed | 12,5 ÷ 25,5 m/min |
| Duty cycle | 60% |
| Protection level | IP44 |
| Built-in control unit | |
| Integrated receiver | |
| Encoder | |
| Virtual encoder | |
| Magnetic limit switches | |
| Pinion for rack | M4 Z18 |
| Operating temperature | -20°C /+50°C |
| Lubrication | GREASE |
| Maximum gate weight | 600 kg |
| Weight | 10 kg |
| N. motors per pallet | 40 |
| Kit weight | 10.6 kg |
