Description:
The Grifco LR-Drive heralds the latest addition to the Grifco Light Commercial portfolio. It has been specifically designed for large and wind-locked roller doors. It is also ideal for shopfront roller grilles thanks to commercial terminals that allow dedicated open and closing.
- Faster: LR-Drive opens a 2.4m high door in only 21 seconds. Fastest in its class!
- Stronger: Stronger: The powerful motor and gearbox can lift roller doors up to 28m² and wind-locked roller doors up to 22m²
- Thinner: The incredibly thin operator requires only 45mm of sideroom clearance
- Smarter: LR-Drive is myQ compatible and features dedicated inputs for open / close and an OPEN Input

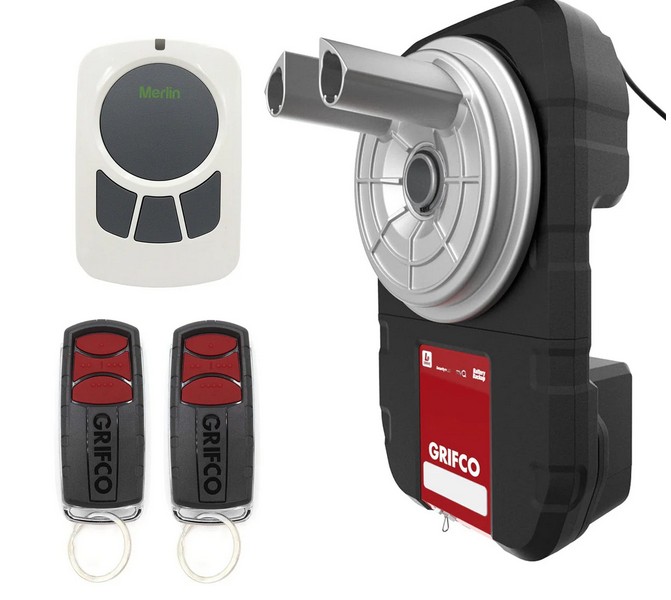

Included:
1 x Grifco LR-Drive Roller Door Motor
1 x Battery Backup Unit
2 x E960G 4-channel keyring transmitters
1 x E138G wireless wall control
1 x Installation Instructions
Specifications
- Power Specifications
- Main AC Power 230-240 VAC 50Hz
- Max. Pull Force 1,300N
- Power 150W
- Operating Temp -20°C to +50°C
- Door Specifications
- Max Door Height 5.5m
- Max Door Weight 270kg
- Normal Torque 45Nm
- Door Type Commercial Steel Spring-Balanced
- Roller Door or Grille
- Max. Door Size 28m²
- 22m² wind-locked
- Max. Door Cycles 50 cycles / day
- Dimensions
- Operator Dims 470 (H) x 280 (W) x 95mm (D)
- 470 (H) x 280 (W) x 150mm (D) with BBU
- Side Room
- Clearance
- 45mm between door drum and mounting
- bracket
- Operator Depth 95mm, 150mm with BBU
- (Door Curtain to Wall)
- Tines 2 x 90mm diecast aluminium tines
- General
- Compliance AS/NZS 60335-1
- AS/NZS 60335-2-103
- Warranty 2 Years / 10,000 Cycles
Brochure link: https://motepro.com.au/Manuals/Grifco/Rolling/LR-Drive-Product-Brochure.pdf
