Merlin MS105MYQ Commander Elite Garage Motor/Opener With 2.5m Belt Rail

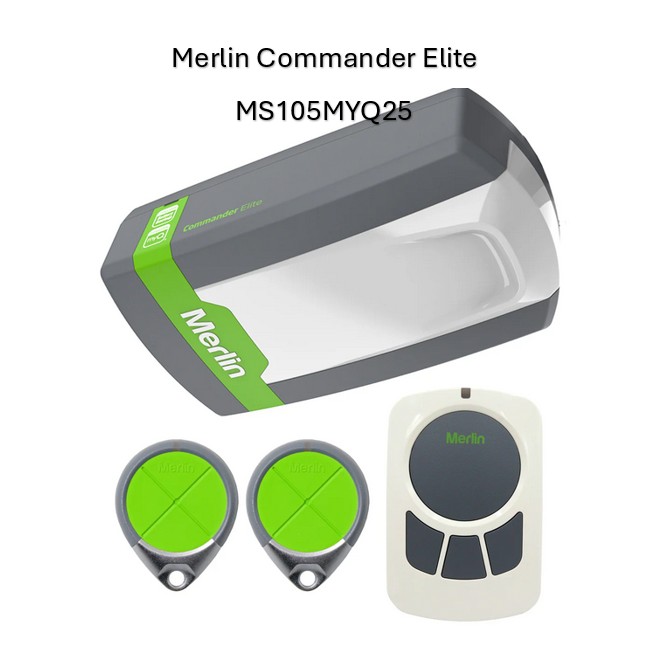

Merlin MS105MYQ Garage Door Opener Includes

1x Merlin “Commander Elite” MS105MYQ Garage Door Opener
2x E970M Premium Keyring Transmitters
1x E138M Premium Wireless Wall Button
1 x 2.5m Belt Rail

1 x Installation Instructions

Specifications

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 20m²
• Max door weight: up to 150kg
• Max peak pulling force: 1000 N
• C-rail with belt drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: Powerful LED Lighting
• Min headroom required: 30mm
• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors
• Door opening time: 18 seconds
• Door closing time: 22 seconds
• Based on a 2.4m high door
• Door height: 3.5m
• Door width: 5.7m

• Double dwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.

Download Brochure: https://cgi.widen.net/s/tpdbkhmnxm/ms105myq-commander-elite-spec-sheet-aus-out-digital---114s5957a
