Merlin MS105MYQ Commander Elite Garage Motor/Opener With 2.5m Belt Rail

GDR004

0.0000 kg

https://www.tigerlink.com.au/web/image/product.template/10392/image_1920?unique=07202f5

490.00 https://www.tigerlink.com.au/web/image/product.template/10392/image_1920?unique=07202f5 490.0 AUD 490.00 GST Exclusive

539.00 GST Exclusive

Not Available For Sale
  • Brands
  • Colour
  • Colour

This combination does not exist.

Brands: Merlin
Colour: Dark Grey, Black

Description:

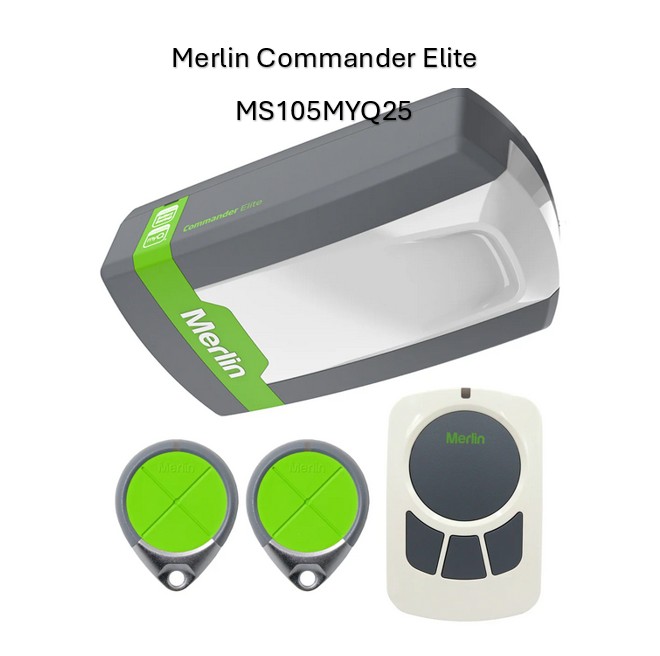

Merlin MS105MYQ Garage Door Opener Includes

1x Merlin “Commander Elite” MS105MYQ Garage Door Opener
2x E970M Premium Keyring Transmitters
1x E138M Premium Wireless Wall Button
1 x 2.5m Belt Rail

1 x Installation Instructions


Specifications

    • 24V DC motor with thermal overload protection
    • Input voltage: 240V AC
    • Rated door area up to 20m²
    • Max door weight: up to 150kg
    • Max peak pulling force: 1000 N
    • C-rail with belt drive
    • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
    • Up to 64 memory registers
    • Courtesy light: Powerful LED Lighting
    • Min headroom required: 30mm
    • Maximum lifting under spring tension = 20kg
    • Suitable for steel and timber spring balanced doors
    • Door opening time: 18 seconds
    • Door closing time: 22 seconds
    • Based on a 2.4m high door
    • Door height: 3.5m
    • Door width: 5.7m
    • Double dwelling


Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.


Download Brochure: https://cgi.widen.net/s/tpdbkhmnxm/ms105myq-commander-elite-spec-sheet-aus-out-digital---114s5957a
