Description:

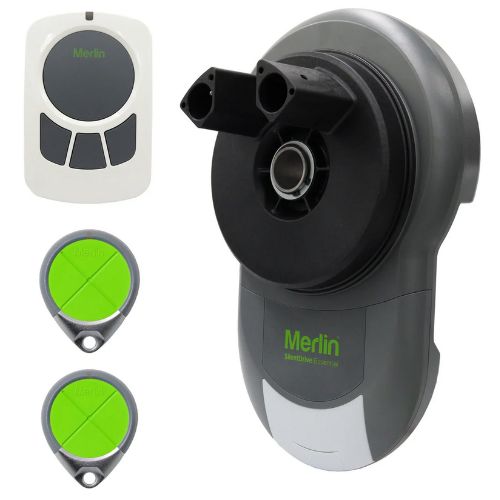

SilentDrive Essential MR655MYQ Roller Garage Door Motor
Included:
1 x MERLIN SilentDrive Essential MR655MYQ Roller Garage Door Motor
2 x Four Button Remote Control (Security+ 2.0 & Security+) (E970M)
1 x
Four Button Wireless Wall Mount Remote Control (Security+ 2.0) (E148M)
1 x Weight Bar
1 x Installation Instructions
Specifications
- 24 DC motor with thermal overload protection
- Input voltage: 240V AC
- Rated door area up to 16.5m2
- Drum rotations: 4.5
- Max Door weight: up to 100kg
- Max peak pulling force: 500N
- Minimum side room 45mm
- 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
- Up to 64 memory registers
- Courtesy light: LED
- Noise rating: 1M 57DB
- Maximum lifting under spring tension = 20kg
- Suitable for steel spring balanced doors
- Door opening time: 13 seconds
- Door closing time: 13 seconds
- Based on a 2.4m high door
- Door height: 4.5m, 3.0m
- Door width: 3.6m, 5.4m
- Single dwelling
Merlin Warranty Terms:
For DIY installs, Merlin offers 1 year warranty.
For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.
Download Brochure : https://cgi.widen.net/s/nfkhdmmxlx/mr655myq-silentdrive-essential-spec-sheet-out-digital---114s5952a
