Description:

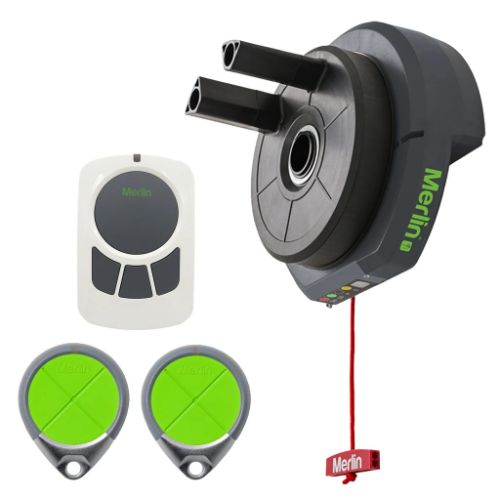

WeatherDrive Roller Garage Door Motor
Included:
1 x MERLIN MR555MYQ WaetherDrive Roller Door Motor
2 x Premium E970M remotes
1 x E148M Wireless Wall Button
1 x Installation Instructions
Specifications
- IP34 housing
- 24V DC motor with thermal overload protection
- Input voltage: 240V AC
- Minimum side room 40mm
- Rated door area up to 15m²
- Max door weight: up to 100kg
- Drum rotations: 5.5
- Max peak pulling force: 500 N
- 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
- Up to 64 memory registers
- Courtesy light: LED
- Noise rating 1M: 51DB
- Soft start/stop function
- Maximum lifting under spring tension = 15kgs
- Suitable for steel spring balanced doors
- Door opening time: 14 seconds (regular), 18 seconds (slow)
- Door closing time: 14 seconds (regular), 18 seconds (slow)
- Based on a 2.3m high door
- Door height: 5.5m, 3.0m, 2.3m
- Door width: 2.7m, 5.0m, 5.5m
- Single Dwelling
