Description:

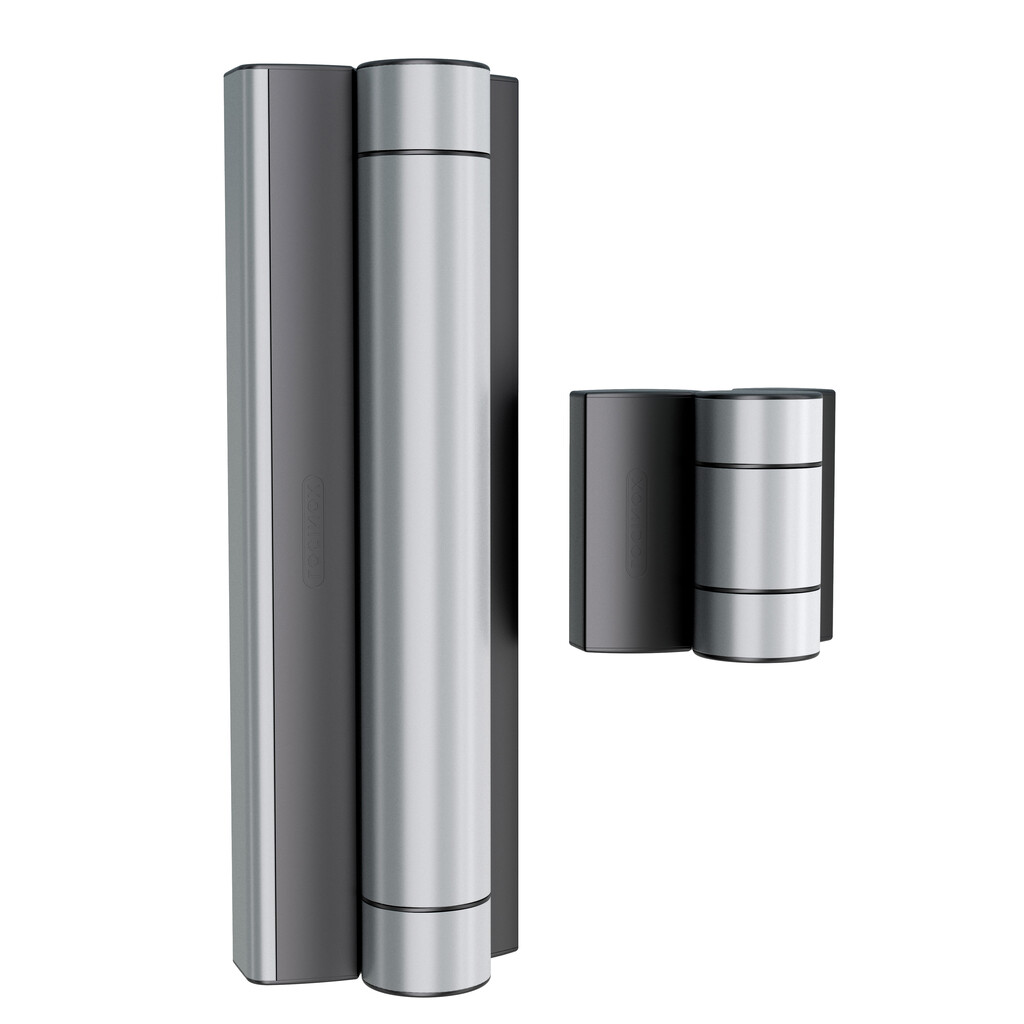

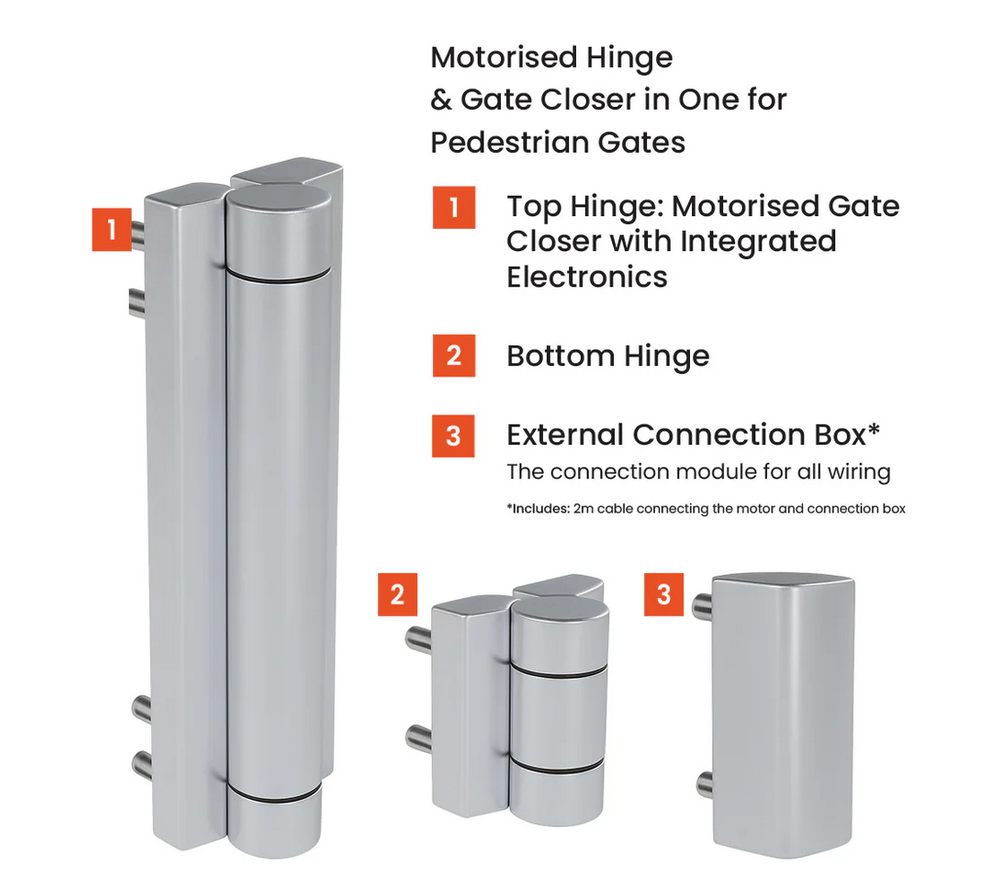

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.
Specifications:
- Motorised gate closer with integrated electronics
- 75 Nm torque

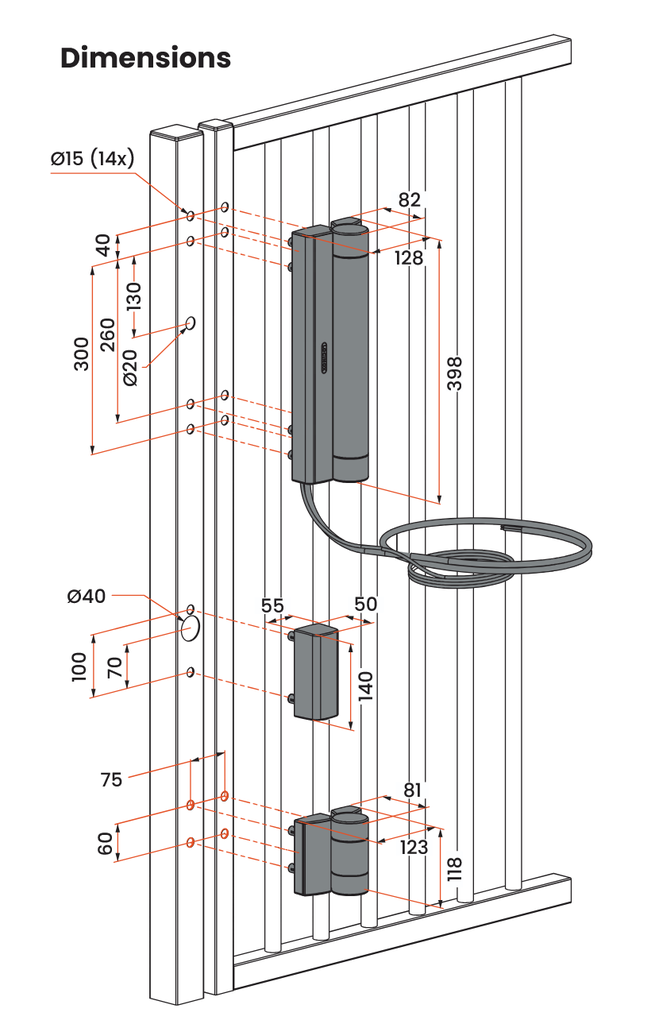

- Fits on post profiles from 60 mm and gate profiles from 40 mm
- Steel gear box
- Anodized aluminium cover
- Fast and easy fixing with Quick-Fix
- ETL-tested
- Input main power supply: 110 AC to 240V AC
- Motor voltage: 24V DC
- External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
- Automated obstacle detection with reverse function
- Brushless motor: long lifespan and intensive usage
- Reversible motor with backdrivability for easy manual use – to be combined with a lock
- 2m cable between motor and connection module
- Compact and vandal-proof design
- Configuration via app
- Tested up to 500.000 cycles
- EN 16005 Compliant
MAGNUS is the first-of-its-kind motorized hinge that seamlessly blends convenience and safety in a sleek, integrated design.
It enables full automation of pedestrian gates without the need for external safety sensors or complicated wiring. The advanced brushless, reversible motor is designed with pedestrian safety in mind, offering easy configuration and reliable performance even under heavy daily use.
Enjoy smooth operation, secure access, and consistent closure—MAGNUS elevates the functionality of pedestrian gates.
Key Features:
- Intelligent motor enables automatic opening and closing
- Durable, brushless, and reversible motor technology
- Integrated obstacle detection and push-to-open capability
- Ideal for public areas, educational institutions, and healthcare facilities
- Fully compliant with global safety standards:
EN16005, PMR, ADA, and UL325
