The FK782 24V DC Electric Gate Lock with Rotating Deadbolt
The Electric Lock features a revolutionary rotating deadbolt design and is ideal for a wide range of gate and door applications. Designed for reliability and strength, it is perfectly suited for driveway gates (single or double), swimming pool gates, pedestrian access gates, and garage or shed swing doors.
The lock consumes no power while in the locked position, improving efficiency and reducing operating costs. It is compatible with most gate openers and access control systems.
The spring-loaded tongue automatically engages when the gate is pushed closed. When energized with 24V DC, the tongue rotates 45°, releasing the striker plate and allowing the gate to open. Once power is removed, the lock automatically returns to the locked position.
It can be installed on both single and double gate systems.
Features
Horizontal or vertical mounting options
24V DC powered locking mechanism
Solid brass rotating deadbolt
Extra-strong rotating bolt design
Unlocks when energized; automatically locks when power is removed
Double coil system
Durable powder-coated finish
Dimensions: 124mm x 67mm
Single gate installation: Gate to post
Double gate installation: Gate to ground or gate to gate (recommended when using a gate stop)

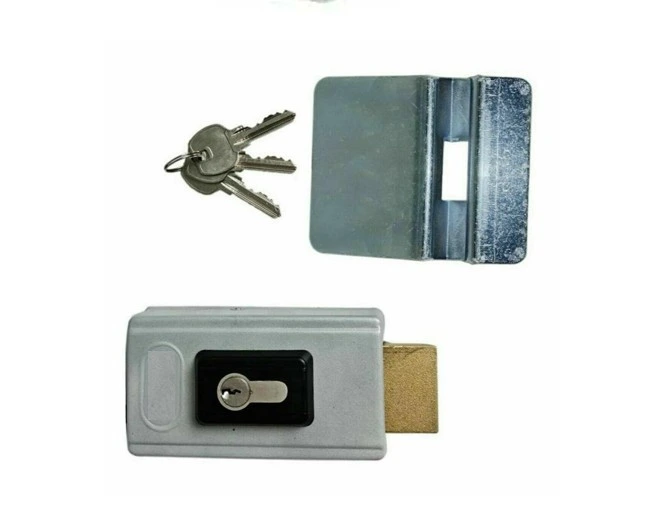

Supplied with galvanized striker plate
Applications
Driveway electric gates
Pedestrian access gates
Swimming pool gates
Garage and shed swing doors
Suitability
The FK782 is designed for pull-to-open (inward swinging) gates.
