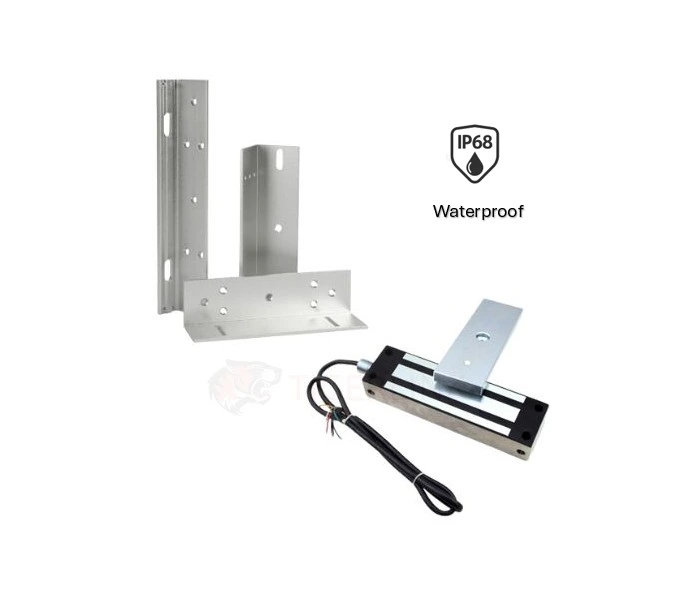

Stainless steel Electromagnetic Lock 500Kg 12V - 24V DC with ZL Bracket
This magnetic electric lock consists of a powerful electromagnet and an armature plate designed for access control door systems. The electromagnet is mounted to the door frame while the armature plate is installed on the door. When power is supplied, the electromagnet creates a strong magnetic force that attracts the armature plate, securely keeping the door closed. When the power is switched off, the magnetic force releases and the door unlocks.
This lock is suitable for a variety of door types including wooden doors, glass doors, metal doors, and fire-rated doors.
Features
High-Quality Material: Constructed from durable stainless steel with IP68 waterproof rating for long-lasting performance.
Anti-Magnetic Design: Built with wear-resistant materials to ensure reliable and stable operation.
Strong Holding Force: Provides up to 500kg (1200 lbs) of holding force for secure door locking.
Specifications
Lock Mode: NC (Normally Closed)
Operating Voltage: DC 12V-24V DC
Working Current: 420mA (12V)
Material: Stainless Steel 304
Holding Force: 500kg (1200 lbs)
4 Wires, 12V & 24V adjustable

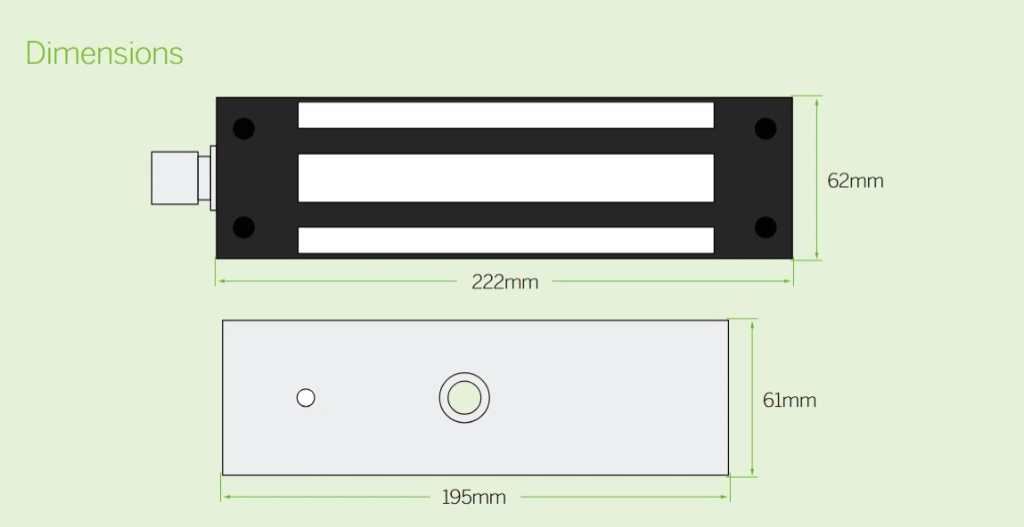

Dimensions:
Lock Body: Approx. 222 × 62 × 38 mm
Armature Plate: Approx. 195 × 61 × 15 mm
Package Weight: Approx. 4.5kg
Package Includes
1 × Magnetic Door Lock
1 × ZL Mounting bracket Kit
1 × User Manual
| Product Parameter | Parameter Description |
| Product Name | Waterproof 1200LBS Magnetic Lock |
| Material | 304 Stainless Steel |
| Waterproof Level | IP68 |
| EL-W1200 4 wires | DC12V (Adjustable DC24V) |
| EL-W1200 7 wires | 12V & 24V adjustable and door sensor function NO/NC/COM |
| Lock Size | 222Lx62Wx38H(mm) |
| Armature Plate Dimension | 195Lx61Wx15H(mm) |
| Holding Force | 500KG(1200LBS) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Weight | 4.5KG |
