Description:

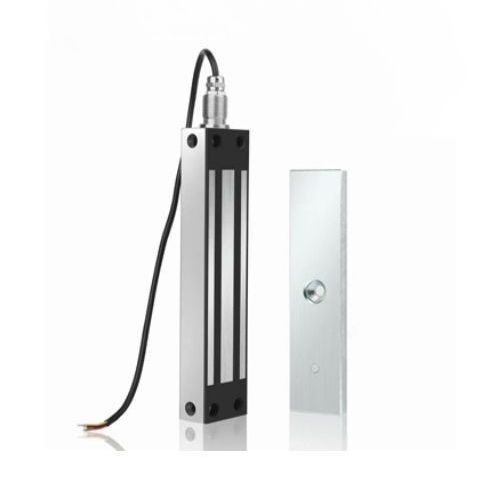

The Electromagnetic Lock is a high-quality locking solution designed to provide a secure and reliable locking mechanism for gates and doors. With a holding force of 280kg, it ensures a strong and effective lock. The lock is weatherproof, making it suitable for outdoor applications and capable of withstanding various weather conditions. It is easy to install and compatible with different access control systems. Enhance the security of your property with the Electromagnetic Lock.
BK379 - Z and L Mounting Brackets for 280kg Magnetic Locks
| Material | 304 Stainless Steel |
| Waterproof Level | IP68 |
| 4 wires | 12V & 24V adjustable |
| Size | 220Lx47Wx25H(mm) |
| Armature Plate Dimension | 200Lx45Wx22.5H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Weight | 2.5KG |
| Carton Size | 38*32*25 (cm) |
