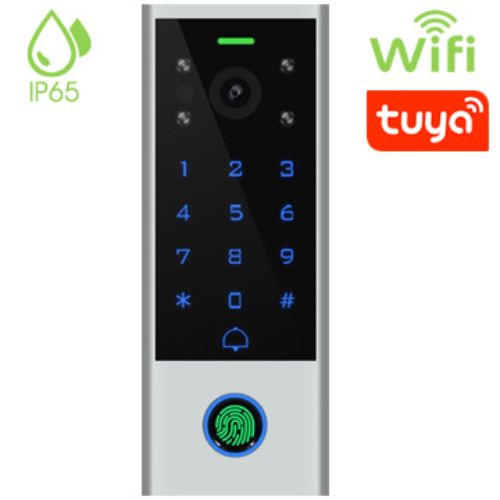

Waterproof Fingerprint Video Intercom Access Keypad
ETKP001
2.0000 kg
| Material: Aluminium |
| Colour: Silver |
Description:
Product Manual
Intercom
> 2.4G WiFi connection
> Android and iOS available
> Full duplex voice intercom
> 2MP+wide angle camera and night vision
> Support TF card with unlimited capacity
> Support motion detection, playback, take picture/video, unlock remotely
Access Control
> Touch key with one relay, 1000 users (988 common+2 panic+10 visitor)
> PIN Length: 4~6 digits
> EM card, Mifare card optional
> Wiegand 26~44 bits in put & output
> Can be used as Wiegand reader with LED & buzzer
> User data can be transferred
> 2 devices can be interlocked for 2 doors
| Video Intercom | |
| Network | 2.4G WiFi connection |
| Pixel | 2.0Mpx (1080P) |
| Visual Angle | Horizontal 140° wide angle |
| Night Vision | IR-CUT (Colorful at daytime, black and white at night) |
| Extended Memory | TF card with unlimited capacity |
| Intercom | Full duplex voice intercom |
| Other Functions | Motion detection; Playback; Take picture/video; Unlock remotely |
| Access Control | |
| User Capacity | 1000(100 fingerprints + 900 card&PINs) |
| Common User | 988 |
| Visitor User | 10 |
| Panic User | 2 |
| PIN Length | 4~6 digits |
| Proximity Card Reader | EM or Mifare |
| Radio Technlogy | 125KHz/13.56MHz |
| Read Range | 2~6cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Wiegand Interface | EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) |
| Mifare card version:Wiegand 26~44 bits input & output (Factory default: Wiegand 34bits) | |
| PIN Output | 4 bits,8bits (asc11),10 digits Virtual Number(Factory default:4bits) |
| Operating Voltage | DC 12V |
| Idle Current | ≤ 150mA |
| Active Current | ≤ 250mA |
