SOL003
Solar Power Kit 24V DC for Merlin-Grifco Gate Opener

Compatible with all Merlin and Grifco gate openers.

  1. Performance & Suitability - Perfect for residential & light commercial use with limited daily cycles. Under typical conditions (e.g. 6 hours of sunlight per day on the Australian East Coast), you can expect around 20 cycles per day with one set of 772ANZ Safety Beams Connected. Actual performance depends on sunlight availability, gate condition, connected accessories and environmental factors. Refer to the manual for detailed performance calculations & suitability to your location.
  2. Installation Tips & Site Selection - To get the best performance from your Solar Kit, consider panel placement. Install the solar panel where it gets full sunlight—ideally facing due North. Avoid shaded or obstructed areas, as this will reduce charging efficiency. It is important to keep the solar panel close to the power supply enclosure, and ensure the enclosure is within reach of your gate opener.
  3. Choosing the Right Setup - Solar performance depends on your location, sunlight hours, and how often the gate is used. Some setups may need two solar panels for reliable operation—especially in areas with less sun or higher usage. During long periods of low sunlight, you may need to recharge the system using the AC charging adaptor (included).
  • IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel
  • 2 x 18Ah batteries
  • 40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*)
  • Adjustable Solar Panel Mounting Kit
  • 240V Mains Power Pack included to fully charge the SOLAR-KIT before installation

* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required.  The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

Solar Power Supply
Rated Voltage21.6VDC to 35VDC
Maximum Output Current5 Amps
Battery Capacity2 x 18Ah
Recharge Time (AC Charger)Approx 24 hours
Operating Temp Range-20ºC to +50ºC
IP RatingIP65
Dimensions335mm x 230mm x 210mm
Weight15Kg



Solar Panel
Peak Power (Pmax):40W / 34.2V
Maximum Current:1.17A
Maximum Voltage:34.2V
Operating Temp Range-40ºC to +85ºC
IP RatingIP65
Dimensions620mm x 400mm x 25mm
Weight2.6Kg


Built for Local Conditions
Designed in Australia to withstand the unique environmental demands of both Australian and New Zealand climates.
Weather Resistant & Durable
Features an IP65-rated Power Supply Enclosure, offering strong protection against dust, rain, and harsh weather.
Reliable Power Storage
Includes 2 x 18Ah high-capacity batteries to keep your gate opener running smoothly.
Solar Powered Convenience
Comes with a 40W Solar Panel for clean, efficient energy—no mains power required.
Expandable System
Need more power? Add a second 40W Solar Panel for improved performance in low-sunlight areas.*
Flexible Mounting Options
Includes a sturdy, adjustable mounting kit to position the solar panel for maximum sunlight exposure.
Pre-Installation Charging
A 240V Mains Power Pack is included to fully charge the system before setup.
3-Year Warranty*
Merlin Peace of Mind

*The warranty period for the Solar Kit Batteries is 12 months from the date of purchase.


$ 1,181.82 1181.82 AUD
ET815

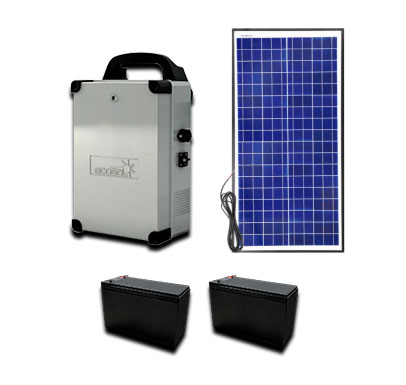

BFT Solar Kit - Ecosol & Panel 40W

BFT Solar Kit - Ecosol & Panel 40W

$ 795.45 795.45 AUD
RT586
Heavy duty Steel Rack for Sliding Gates 1005x30x12mm long

Heavy duty Steel Gear Rack for Sliding Gates 1005x30x12mm long

Steel racks should be used on all gates exceeding 800kg or where a large slope is present.

It will provide a more positive mesh with drive pinion and will also provide a longer service life for both the rack and your motor.

Features

- Solid Steel come with 3 screws

- 1005 in length

- 30x12mm



$ 22.73 22.73 AUD
RT588

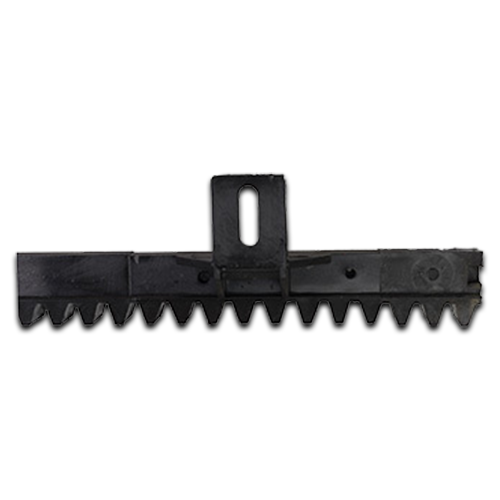

Nylon Rack with Steel Core 1 Metre - Lugs Up

The RT588 Heavy-Duty Nylon Rack is a robust and dependable solution designed for rack and pinion systems. Made from high-quality nylon material, this rack offers exceptional strength and durability. With a length of 1 meter and lugs-up design, it provides secure and efficient operation for your gate or door system. The wear-resistant construction ensures long-lasting performance even in demanding environments. Upgrade your rack and pinion system with the RT588 Heavy-Duty Nylon Rack for reliable and smooth operation.

$ 18.00 18.0 AUD
RT580

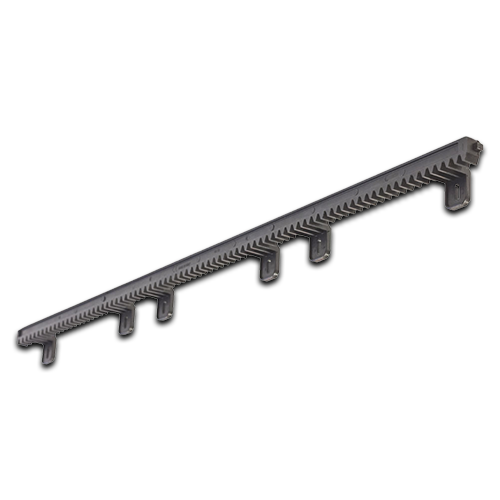

Nylon Rack 6 Lugs with Steel Core inserted 1 Metre - Lugs Down

The RT580 Heavy-Duty Nylon Rack is a reliable and durable solution for rack and pinion systems. This rack is made from high-quality nylon material, known for its strength and resistance to wear and tear. With a length of 1 metre, it provides ample rack space for smooth and efficient operation of your gate or door system.

The lugs-down design ensures secure attachment and optimal performance. Install the RT580 Heavy-Duty Nylon Rack for long-lasting and dependable operation of your rack and pinion system.

Please contact us for special trade price & bulk price

$ 16.82 16.82 AUD

racking, rack, lugs down
ET811

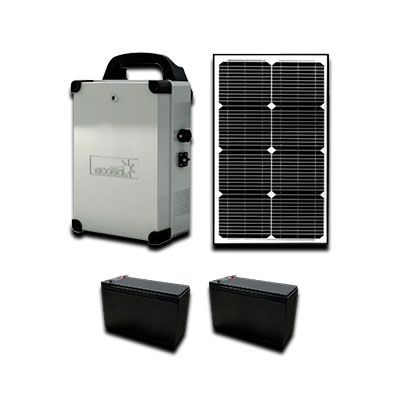

BFT Solar Kit - Ecosol & Panel 20W

BFT Solar Kit - Ecosol & Panel 20W

$ 726.36 726.36 AUD
GMSG601SLK
Solar BFT Deimos ULTRA 600 Kit

The GMSG606 BFT Motor Deimos Ultra 600 Kit Solar is a comprehensive motor kit designed for sliding gates, specifically optimized for solar power operation. This kit features the BFT Deimos Ultra 600 model, known for its advanced features, durability, and energy-efficient design. It is suitable for residential and commercial sliding gates and offers reliable and efficient gate automation.

The kit includes all the necessary components, such as the motor, solar panel, control panel, receiver, and safety features, to ensure a complete and sustainable automated gate system. The solar power capability allows you to harness renewable energy and reduce your reliance on traditional power sources.

With the GMSG606 BFT Motor Deimos Ultra 600 Kit Solar, you can enjoy the convenience of automated gate operation while benefiting from the eco-friendly and cost-saving advantages of solar power. The advanced features of the Deimos Ultra 600 model, combined with solar power efficiency, make it a reliable and efficient solution for your sliding gate automation needs.


Maximum Gate Weights

Holds gates up to 600kg


Kit Includes

  • 1 x DEIMOS  BT ULTRA A600 Slide Gate Motor
  • 3 x BFT Mitto 4 Channel Transmitters
  • 4 x 1m Heavy Duty 6 lugs Gear Rack
  • 1 x Solar Kit with solar panel and 2 batteries
$ 1,540.91 1540.91 AUD
GMSG401SLK
Solar BFT Deimos ULTRA 400 Kit

The GMSG407 BFT Motor Deimos Ultra 400 Kit Solar is a motor kit specifically designed for sliding gates that operate on solar power. This kit includes the BFT Deimos Ultra 400 model, which is equipped with solar-compatible components and features to ensure efficient and reliable operation using solar energy. It is an ideal solution for locations where access to electricity is limited or where a sustainable and eco-friendly gate automation system is desired. The kit includes all the necessary components, including solar panels, batteries, control systems, and safety features, to provide a complete and self-sustaining solar-powered gate automation solution. With the GMSG407 BFT Motor Deimos Ultra 400 Kit Solar, you can enjoy the convenience of automated gate access while harnessing the power of the sun.


Kit Includes

  • 1 x DEIMOS  BT ULTRA A400 Slide Gate Motor
  • 3 x BFT Mitto 4 Channel Transmitters
  • 4 x 1m Heavy Duty 6 lugs Gear Rack
  • 1 x Solar Kit with solar panel and 2 batteries

  • Maximum Gate Weights

  • Holds gates up to:400kg
  •
$ 1,444.55 1444.55 AUD
GMSG600SLK
Solar BFT Deimos BTA600 Kit

The GMSG605 BFT Motor Deimos BTA 600 Kit Solar is a comprehensive motor kit designed for sliding gates, specifically optimized for solar power operation. This kit features the BFT Deimos BTA 600 model, known for its reliable performance and energy-efficient design. It is suitable for residential and commercial sliding gates and offers smooth and hassle-free operation.

The kit includes all the necessary components, such as the motor, solar panel, control panel, receiver, and safety features, to ensure a complete and sustainable automated gate system. The solar power capability allows you to reduce your dependence on traditional power sources and lower your energy costs.

With the GMSG605 BFT Motor Deimos BTA 600 Kit Solar, you can enjoy the convenience of automated gate operation while benefiting from the eco-friendly and cost-saving advantages of solar power. It is an ideal choice for those looking for a sustainable and efficient solution for their sliding gate automation needs.


Maximum Gate Weights

Holds gates up to 600kg


Kit Includes

  • 1 x DEIMOS BT A600 Slide Gate Motor
  • 3 x BFT Mitto 4 Channel Transmitters
  • 4 x 1m Heavy Duty 6 lugs Gear Rack
  • 1 x Solar kit with solar panel and 2 batteries

$ 1,450.00 1450.0 AUD
GMSG400SLK

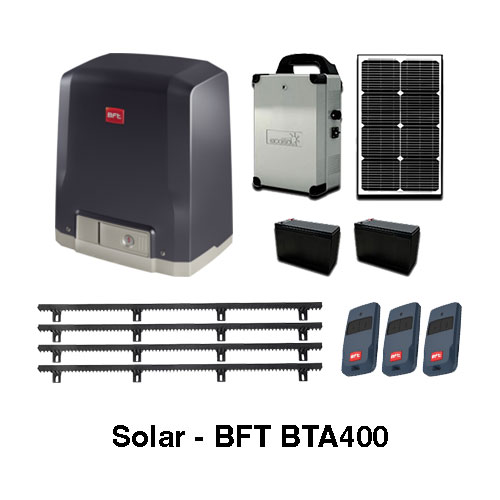

Solar BFT Deimos BTA 400 Kit

The BFT Deimos BTA 400 Gate Motor is a reliable and durable gate automation system suitable for residential or commercial gates weighing up to 600 kg. This kit comes with a powerful motor that ensures smooth and fast gate operation while maintaining maximum safety for users. The Deimos BTA 600 also features a sleek design that blends seamlessly with any gate style, giving your property a modern look.

The kit includes an easy-to-use control board with a range of features such as obstacle detection, pedestrian opening, and auto closing function. The wireless keypad (not included) and remote control options provide convenience and accessibility for users to open and close the gate from a distance.


Maximum Gate Weights

Gate Weight: Up to 400kg

To power the motor in the solar setup, it will be supplied with 24V DC from the batteries located in the Ecosol box, instead of the typical 24V AC from the transformer.


Kit includes

Deimos BTA 400 x 1

BFT Mitto Remote x 3

Nylon Rack x 4 (1 metre each)

Ecosol Box + Solar Panel x 1

After Sales Support & 24-Month Warranty

$ 1,353.64 1353.64 AUD
ET813
BFT ECOSOL Solar Double Extension- No control board

BFT ECOSOL Expansion board with batteries included

1. Ecosol box

2. Batteries x 2

3. Ecosol Cable

 No control board

$ 362.27 362.27 AUD
SOL118

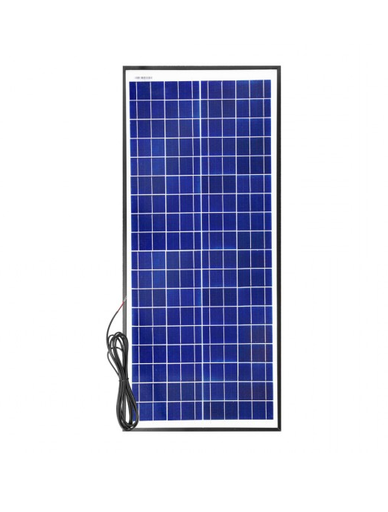

40 Watts Solar Panel for 24V DC System

40 Watts Solar Panel for 24V DC System

Our 24 Volt solar panel will provide power to trickle charge a 24V vehicle or deep cycle battery.To run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

$ 150.00 150.0 AUD
SOL115

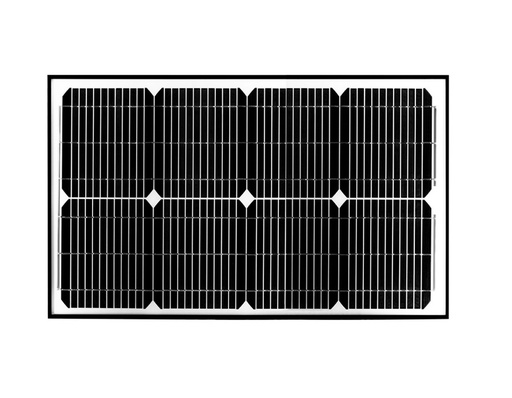

20 Watts Solar Panel for 24V DC System

24V Solar Panel 20 Watts


This solar panel is used for 24V DC system

  • Max. Power: 20W
  • Optimum Power Current: 0.56A
  • Optimum Power Voltage: 36V
  • Short Circuit Current: 0.59A
  • Open Circuit Voltage: 43.2V
  • Product Size: 530x350x25mm
  • Max System Vlot: 1000V

$ 81.77 81.77 AUD
