Sliding Gate Motors

Sliding Gate Motors

Mains Voltage Configuration
Mains Voltage Configuration
Low Voltage Configuration
Low Voltage Configuration
Solar Configuration
Solar Configuration
Mains Voltage Configuration
Mains Voltage Configuration
Low Voltage Configuration
Low Voltage Configuration
Solar Configuration
Solar Configuration
GMSG713

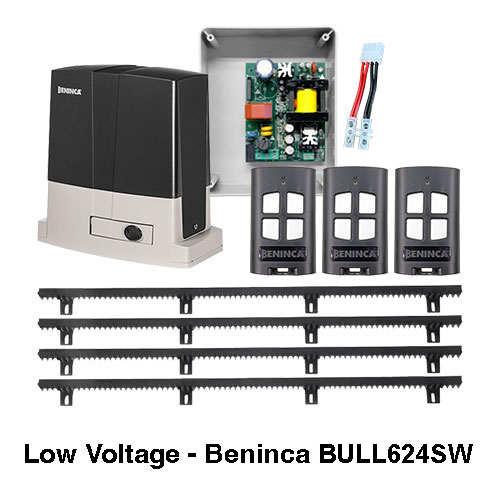

Low Voltage Beninca BULL624SW 600kg - Complete Kit

Italian Sliding Gate Motor Beninca BULL624 SW 24V 600kg- Motor kit



Kit Includes:

Beninca 624SW x 1

Beninca Low Voltage Box x 1

Beninca Low Voltage Connector x 1

Beninca Remotes x 3

Lugs down nylon racks x 4


The BULL624SW is a 24 volt motor designed for residential and commercial sliding gates up to 600kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG The BULL624SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL624SW is designed for residential and commercial sliding automatic gates up to 600kg in weight.

The BULL624SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.


Power supply 115 / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 3.2 / 1.7 A
Maximum thrust 715 N
Opening speed 5.5 ÷ 11 m/min
Duty cycle intensive use
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z14
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 8.0 kg
N. motors per pallet 40
Kit weight 8.5 kg
N. kits per pallet 40


Battery Back upWireless Keypad



$ 1,053.64 1053.64 AUD
GMSG712
Low Voltage Beninca BULL424SW 450kg - Complete Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 450kg- Motor kit



Kit Includes:

Beninca 424SW x 1

Beninca Low Voltage Box x 1

Beninca Low Voltage Connector x 1

Beninca Remotes x 3

Lugs down nylon racks x 4


The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight.

The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 450 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44




Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

400 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%

Battery Back upWireless Keypad



$ 699.09 699.09 AUD
ET824

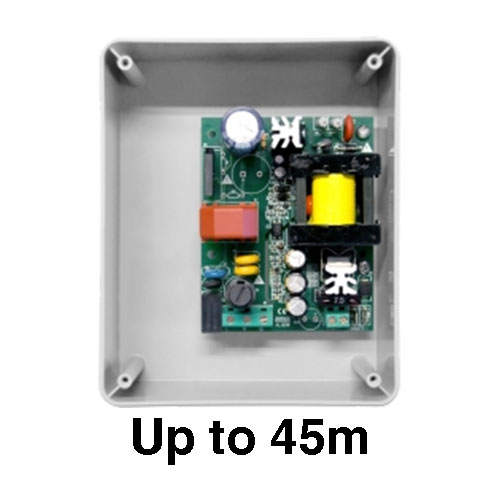

Beninca SAR.24 Low Voltage Box 7Amp

7Amp low voltage box with built-in transformer.

Up to 45m distance


Works with all Beninca Control Boards with screen.

For SW series (without screen), an adapter is required.

$ 244.55 244.55 AUD
GMSG711
240V Beninca BULL1224 Turbo 1200kg - Complete Kit

Beninca BULL1224 Turbo 1200kg - Complete Kit with 3 remotes

Max Speed: 24m/min

$ 1,699.00 $ 1,431.82 1431.82 AUD
GMSG708
240V Beninca BULL624 Turbo 600kg - Complete Kit

Italian Sliding Gate Motor Beninca BULL624 TURBO 24V 600kg KIT


Max Speed: 25m/min



Power supply 115 Vac / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 5 / 3 A
Maximum thrust 330 N
Opening speed 12,5 ÷ 25,5 m/min
Duty cycle 60%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 10 kg
N. motors per pallet 40
Kit weight 10.6 kg




$ 1,045.45 1045.45 AUD
GMSG706

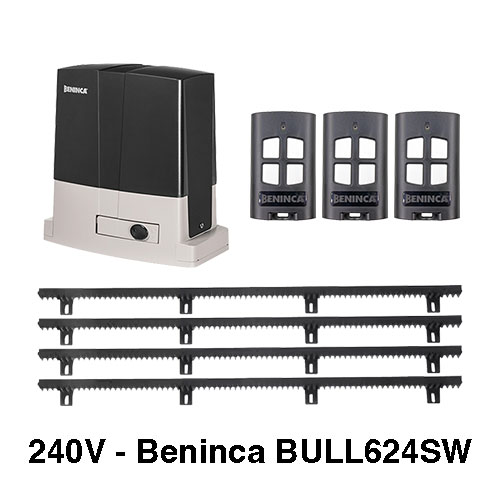

240V Beninca BULL624SW 600kg - Complete Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 600kg- Motor kit



The BULL624SW is a 24 volt motor designed for residential and commercial sliding gates up to 600kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG The BULL624SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 600kg in weight.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection.

The BULL624SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 600 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44





Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

600 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%



$ 799.00 $ 635.45 635.45 AUD
GMSG702
240V Beninca BULL424SW 450kg - Complete Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 450kg- Motor kit



The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection.

The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 450 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44




Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

400 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%

Battery Back up $185Wireless Keypad $218.50


$ 690.00 $ 630.91 630.91 AUD
