Weld On Hinges

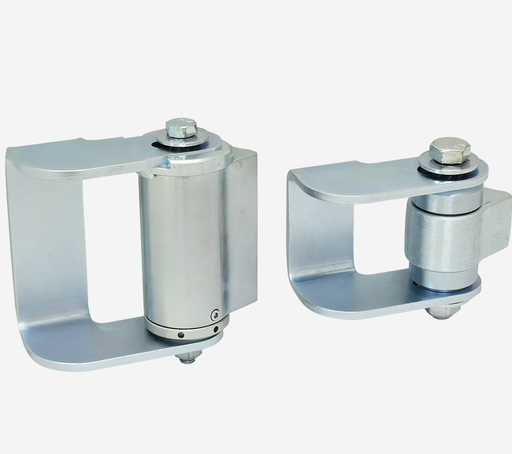

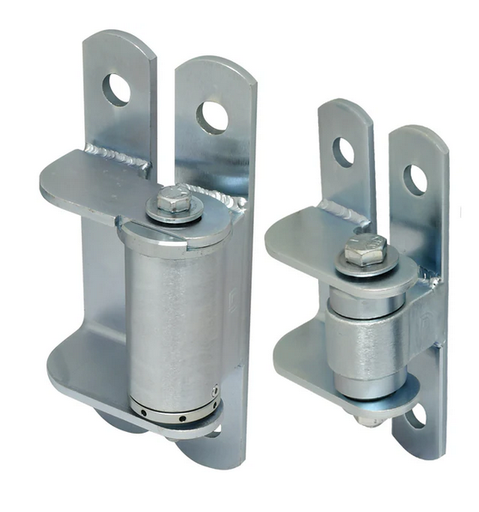

The Self-Closing Badass Hinge Set is specifically designed for gates weighing up to 140 kg,   The face mount, self-closing gate hinge offers a full 180º gate opening for an unobstructed passage, with gate gaps as small as 13mm. Weld-on and bolt-on models available. Horizontally adjustable, 13mm to 25mm gate gap offers heightened security and a symmetrical balance when installed with small gap latches. No greasing or maintenance required on sealed bearings

Opens to 180° for unobstructed pass through
• Achieve gate gaps as small as 13mm
• Horizontally adjustable from 13mm to 25mm for precise installation
• Both weld-on and bolt-on models available
• No greasing or maintenance required on sealed bearings. EVER!
• Horizontal adjustability is ideal for panic bar installations
• 5 tension-adjustment settings
• Self-closing maximum gate weight: 200kg (with 2 closers) CI3825FM
• Self-closing maximum gate weight: 140kg (with a closer and plain hinge set CI3850FM)

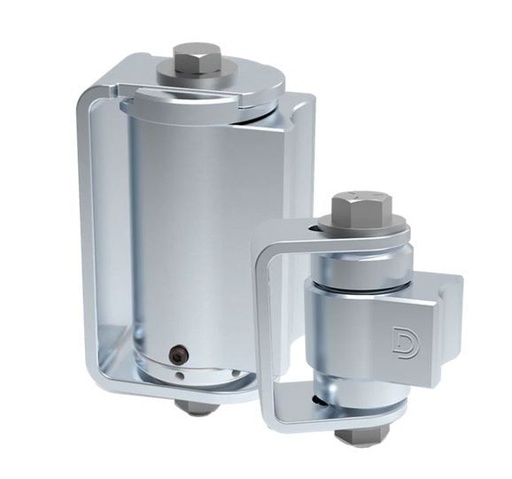

The Self-Closing Badass Hinge Set is specifically designed for gates weighing up to 140 kg,  The bolt-on, self-closing gate hinges are easy to install and adjust for perfect installation. Compatible for use on aluminium gates for non-welding and high-traffic gates to ensure correct movement. Horizontally adjustable for perfect installations that ensures proper gate function. The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option.

Opens to 180° for unobstructed pass through
• Achieve gate gaps as small as 13mm
• Horizontally adjustable from 13mm to 25mm for precise installation
• Both weld-on and bolt-on models available
• No greasing or maintenance required on sealed bearings. EVER!
• Horizontal adjustability is ideal for panic bar installations
• 5 tension-adjustment settings
• Self-closing maximum gate weight: 200kg (with 2 closers) CI3835FM
• Self-closing maximum gate weight: 140kg (with a closer and plain hinge set) CI3860FM

The Swing Gate Hinges Shackle Weld-on Hinges are heavy-duty hinges designed for swing gates that require strength and reliability. With a 20mm pin size, these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.

Colour: Dark Grey

Hold weights up to 600kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

Heavy Duty Swing Gate Barrel Weld on Hinges designed for swing gates that require strength and reliability. these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.

Hold weights up to 1000kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

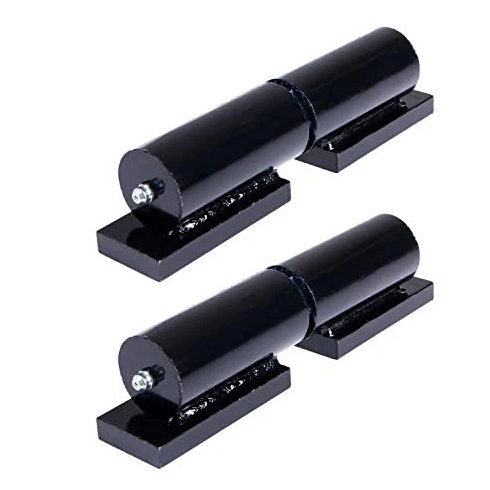

Heavy Duty Swing Gate Barrel Weld on Hinges designed for swing gates that require strength and reliability. these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.

Hold weights up to 600kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

The Weld-On Steel Self-Closing Hinge is designed for gates weighing up to 60kg. Constructed from robust steel, this hinge is built to withstand heavy-duty use and provide long-lasting performance. Its weld-on design ensures a secure and permanent attachment to the gate, enhancing stability and durability. The self-closing mechanism allows the gate to automatically close behind you, providing convenience and ensuring security. This hinge is suitable for a wide range of gate applications, including industrial, commercial, and high-traffic areas.

Hold weights up to 60kg

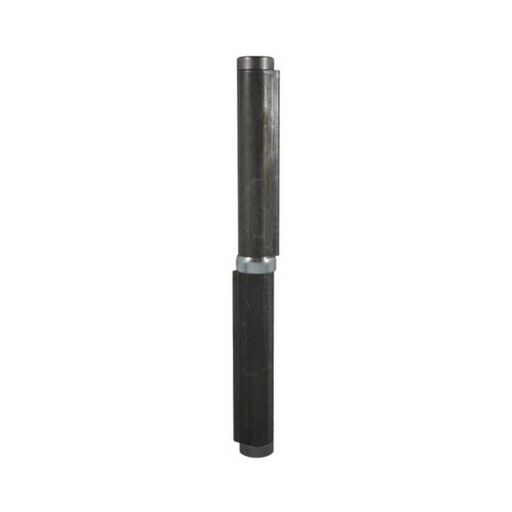

The Weld-On Steel Self-Closing Hinge is designed for gates weighing up to 20kg. Made from durable steel, this hinge is built to withstand heavy use and provide reliable performance. Its weld-on design ensures a secure and permanent attachment to the gate, enhancing stability and strength. The self-closing feature allows the gate to automatically close behind you, providing convenience and ensuring security. This hinge is suitable for various gate applications, including residential and light commercial projects.

Hold weights up to 20kg

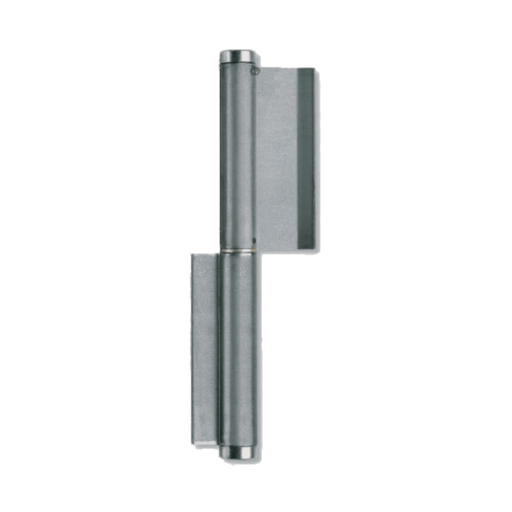

The Weld-On Self-Closing Hinge with Push Plate is a heavy-duty hinge designed to provide reliable self-closing functionality for gates weighing up to 80kg. This single hinge features a push plate that activates the self-closing mechanism, ensuring secure gate closure after each use. The hinge is made from durable materials, specifically designed for welding onto metal gate frames, offering strength and stability. With its robust construction and self-closing feature, this hinge is suitable for commercial, industrial, or residential applications where a reliable and convenient gate closure is required.

Hold weights up to 80kg

The Swing Gate Hinges Shackle Weld-on Hinges are heavy-duty hinges designed for swing gates that require strength and reliability. With a 20mm pin size, these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.

Hold weights up to 600kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

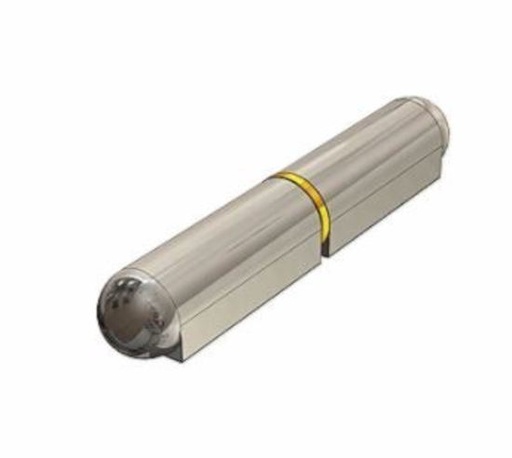

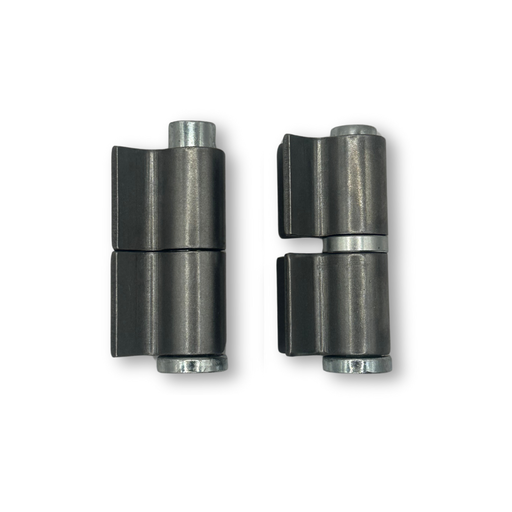

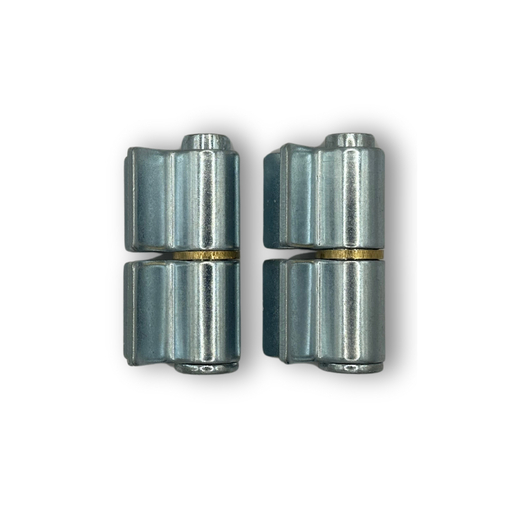

The Steel Weld-On Hinge is a sturdy hinge designed for welding onto metal gates, doors, and other applications. It features a steel pin with a size of 20x180mm, providing excellent strength and stability. The hinge is made from high-quality steel, ensuring durability and long-lasting performance. It comes with a brass washer that reduces friction and allows for smooth operation. This weld-on hinge is ideal for heavy-duty applications where secure and reliable operation is essential. With its robust construction and reliable functionality, the Steel Weld-On Hinge is a reliable choice for a variety of metal fabrication projects.

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.

The Steel Weld-On Hinge is a heavy-duty hinge designed for welding onto metal gates, doors, and other applications. It features a steel pin with a size of 20x140mm, providing excellent strength and stability. The hinge is made from high-quality steel, ensuring durability and long-lasting performance. It comes with a brass washer that reduces friction and allows for smooth operation. With its robust construction and reliable functionality, the Steel Weld-On Hinge is an ideal choice for securing and supporting heavy gates and doors.

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.

The Steel Weld-On Hinge is a robust hinge designed for welding onto metal gates, doors, and other applications. It features a steel pin with a size of 22x200mm, providing strength and stability. The hinge is made from high-quality steel, ensuring durability and long-lasting performance. It comes with a brass washer that reduces friction and allows for smooth operation. This weld-on hinge is suitable for heavy-duty applications where secure and reliable operation is required. With its sturdy construction and dependable functionality, the Steel Weld-On Hinge is a reliable choice for various metal fabrication projects.

The Steel Weld-On Hinge is a robust hinge designed for welding onto metal gates, doors, and other applications. Made from high-quality steel, this hinge offers durability and strength to withstand heavy loads and frequent use. It comes with an 80mm brass washer that ensures smooth and friction-free operation. The hinge can be easily welded onto the desired surface, providing a secure and reliable hinge solution. Whether you're constructing a new gate or repairing an existing door, the Steel Weld-On Hinge is a reliable choice that delivers long-lasting performance.

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.

The Steel Weld-On Hinge is a high-quality hinge designed for welding onto metal gates and doors. This hinge features a durable steel construction, ensuring strength and durability. With a 60mm brass washer included, it provides smooth and friction-free operation. The hinge is suitable for various applications, including gates, fences, cabinets, and more. It can be easily welded onto the desired surface, offering a secure and reliable hinge solution. Whether you're working on a new project or repairing an existing gate, the Steel Weld-On Hinge is a reliable choice that guarantees long-lasting performance.

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.

The Steel Weld-On Hinge is a heavy-duty hinge designed for robust applications. Made from high-quality steel, this hinge offers exceptional strength and durability. Comes with a 16x120mm size and comes with a brass washer that enhances stability and smooth operation. The weld-on design ensures a secure and permanent attachment to gates, doors, or other heavy objects. With its sturdy construction and brass washer, the Steel Weld-On Hinge provides reliable performance in demanding environments.

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.

The Steel Weld-On Hinge is a durable and reliable hinge designed for various applications. Made from high-quality steel, this hinge is built to withstand heavy loads and provide long-lasting performance. It comes in 100mm with brass washer that adds stability and smooth operation to the hinge. The weld-on design ensures a secure and permanent attachment to the gate or door, making it suitable for welding applications. With its sturdy construction and brass washer, the Steel Weld-On Hinge is an excellent choice for gates, doors, and other heavy-duty applications.

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.

The Self-Closing Badass Hinge Set is specifically designed for gates weighing up to 140 kg, providing a convenient self-closing feature. This set includes all the necessary components for a complete hinge installation. The self-closing mechanism ensures that the gate automatically closes behind you, offering convenience and enhanced security. Crafted with durability in mind, these hinges are built to withstand regular use and various weather conditions. Suitable for both residential and commercial applications, the Self-Closing Badass Hinge Set is the ideal choice for secure and hassle-free gate installations.

Hold weights up to 130kg
