HN925

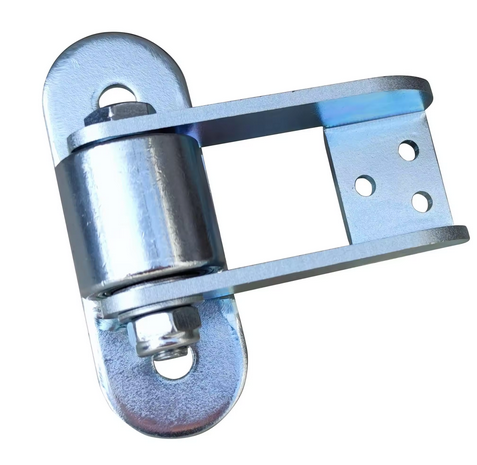

Steel 180 Degree Screw on Hinges for Bi fold- Gates up to 60 kg / Each

Steel 180 Degree Screw on Hinges for Bi folder-  Gates up to 60 kg / Each

$ 26.82 26.82 AUD
HN478

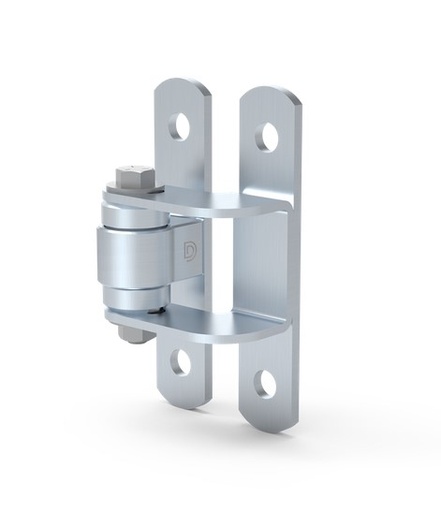

D&D Steel BadAss Face Mount Hinge for Gates up to 450 kg - Zinc Finish / Each

Steel BadAss Face Mount Hinge for Gates upto 450 kg - Zinc Finish / Each

The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to SHUT IT’s unique bushing design The Bolt-On BadAsses, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage. The CI3720 is sold as an individual item.


Specifications

Hinge name and code Shut It® BadAss C13720
Hinge material Zinc coated steel (safe to powdercoat)
Gate Application Non self closing, Pedestrian Gate, Driveway Gate – Double, Driveway Gate – Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
Gate material suitability Steel
Suit gate size/loading Maximum gate size 2m H x 3m W – (7ft x 10ft) / loading 900kg per gate / maximum gate weight 500KG
Gate Frame/Post Shape Square-to-Square
Opening Opens to 180 degrees
Min Post Size 38mm+ (1½”)
Ideal Gate Gap 74-86mm (can achieve gaps of 13mm) / horizontally adjustable
Fixing Method Bolt-On (4x16mm diameter holes)
Hinge measurements 191x40mm backing plate x 2 / 40mm barrell / 60mm between the hinge plates
Hinge weight 1.8kg per hinge
Boxed size and weight per pair 220x190x80mm / 3.7kg
Manufactured in United States


$ 180.00 180.0 AUD
HN940

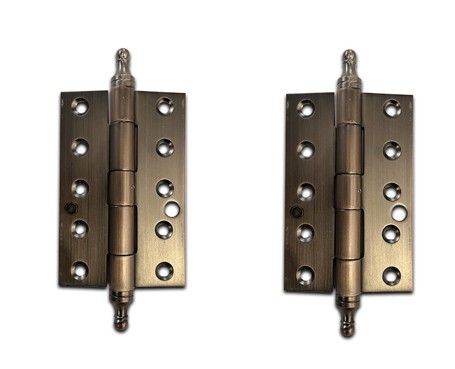

Decorative Gate Hinges - Stainless Steel - pair

The HN940 Decorative Gate Hinges in stainless steel are a stylish and functional addition to your gate. This pair of hinges is designed to provide both durability and aesthetic appeal. Crafted from high-quality stainless steel, they offer excellent corrosion resistance, ensuring long-lasting performance. With their decorative design, these hinges add a touch of elegance to any gate. The hinges are easy to install and provide smooth and reliable operation. Whether for residential or commercial gates, the HN940 Decorative Gate Hinges are a great choice for both functionality and visual appeal.

$ 40.91 40.910000000000004 AUD
