D&D Steel BadAss Face Mount Hinge for Gates up to 450 kg - Zinc Finish / Each

HN478

1.8000 kg

https://www.tigerlink.com.au/web/image/product.template/4777/image_1920?unique=5a8e6c6
(0 review)

189.00 https://www.tigerlink.com.au/web/image/product.template/4777/image_1920?unique=5a8e6c6 189.0 AUD 189.00 GST Inclusive

189.00 GST Inclusive

Not Available For Sale

    This combination does not exist.


    Description:

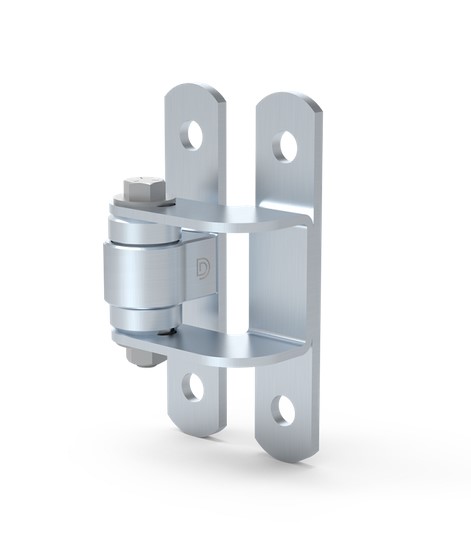

    Steel BadAss Face Mount Hinge for Gates upto 450 kg - Zinc Finish / Each

    The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to SHUT IT’s unique bushing design The Bolt-On BadAsses, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage. The CI3720 is sold as an individual item.


    Specifications

    Hinge name and code Shut It® BadAss C13720
    Hinge material Zinc coated steel (safe to powdercoat)
    Gate Application Non self closing, Pedestrian Gate, Driveway Gate – Double, Driveway Gate – Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
    Gate material suitability Steel
    Suit gate size/loading Maximum gate size 2m H x 3m W – (7ft x 10ft) / loading 900kg per gate / maximum gate weight 500KG
    Gate Frame/Post Shape Square-to-Square
    Opening Opens to 180 degrees
    Min Post Size 38mm+ (1½”)
    Ideal Gate Gap 74-86mm (can achieve gaps of 13mm) / horizontally adjustable
    Fixing Method Bolt-On (4x16mm diameter holes)
    Hinge measurements 191x40mm backing plate x 2 / 40mm barrell / 60mm between the hinge plates
    Hinge weight 1.8kg per hinge
    Boxed size and weight per pair 220x190x80mm / 3.7kg
    Manufactured in United States
