Description:

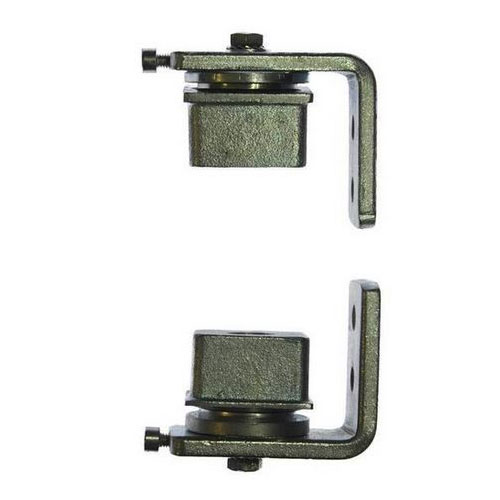

The Insert Bearing Hinges are designed for 50x50mm steel frame applications, providing a reliable and robust hinge solution for your gates or doors. This package includes a set of two hinges, offering the necessary hardware for secure and smooth operation.
With an insert design, these hinges are easy to install by aligning them with the pre-drilled holes on your steel frame and tapping them in securely. The bearing feature ensures smooth movement and reduced friction, allowing for effortless opening and closing of your gates or doors.
Universal Left and Right Heavy Duty Adjustable Bearing Hinges are specifically designed for 50x50mm steel frames, ensuring a precise fit and optimal performance. These hinges provide sturdy support and stability, enhancing the durability and functionality of your steel frame applications.

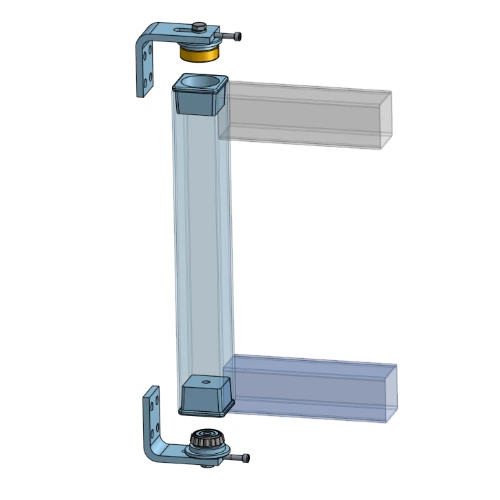

The benefit of these hinges is that the bearing fits inside your 50x50x2mm SHS frame. Thus you don't need to leave a huge gap under your gate or have the hinges higher than your post.
Angle bracket made from 8mm thick rust resistant zinc/gal plated steel
Angle Bracket 80mm(bearing side) x 70mm (post side) x 40mm wide
Top and bottom hinge for one swing gate leaf
If you have a double gate buy 2 of these.
No need to weld this to your gate
Bearings fit inside 50x50 tube gate frame with wall a thickness of 2mm
Weld or bolt Angle mounting bracket to steel post or bolt on to wood or aluminum post
Adjustable positions with locking nut
Don't forget to grease the bearings during installation!!
Hold weights up to 350kg
