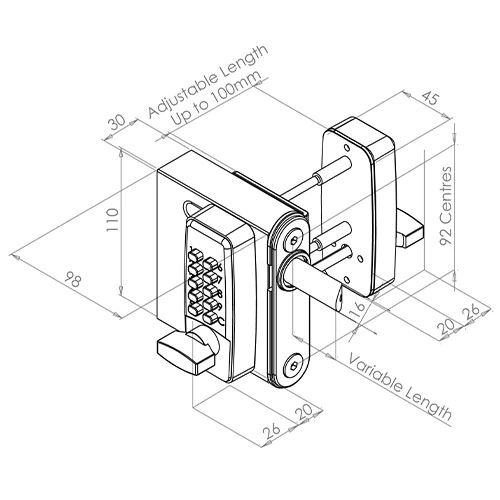

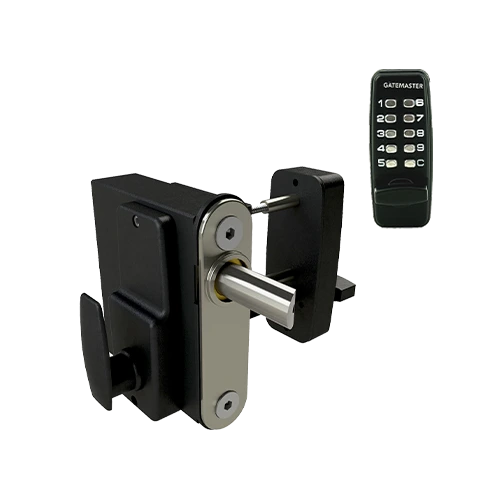

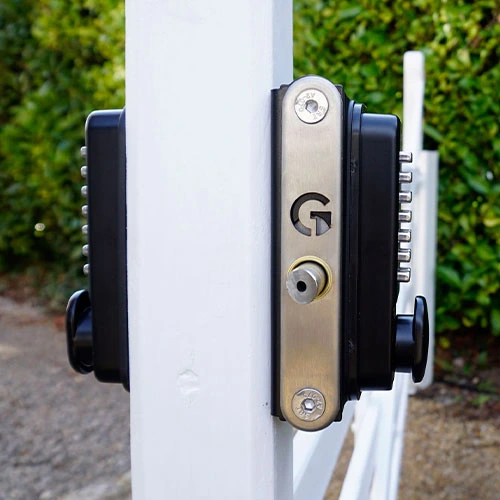

SelectPro Sandwich Digital Locks
Unlike traditional "bolt-on" or "side-mounted" locks that sit on the side of the gate frame, SelectPro surface-mounted configurations fix flat onto the rear and the front of the gate frame itself or we call it the 'sandwich mount'. This type of locks comes in 4 different variations: Single or Double Sided Keypad and Left or Right Hand side.
- Optimal Security: The standard SelectPro keypad features a 10-button interface (9 numbers and 1 letter), offering reliable, optimal perimeter security.
- Adaptable: SelectPro accommodates both inwards and outwards swinging gates.
- Flexible Frame Depth: Out of the box, the heavy-duty fixing fasteners and internal spindle lengths are highly adjustable, allowing the lock to mount seamlessly onto gate frames and solid posts up to 100mm thick
- 22mm Bolt Adjustment: The solid stainless steel latch bolt is fully threaded, allowing you to manually spin it in and out to adjust its length up to 20mm
- 20mm Bolt Throw: The latch bolt moves in and out up to 20mm when the handle is turned

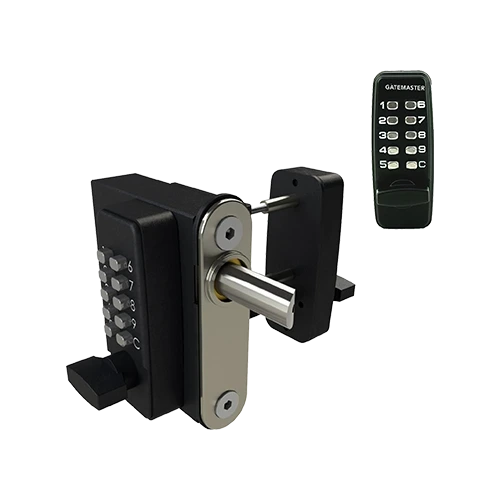

Double-Sided Keypad
Fitted with mechanical keypads on both sides, this lock secures entry and exit—ideal for schools, childcare centres, and shared apartments. Unlike single-sided locks, it cannot be bypassed through open slatted or mesh gates, as a code is required from both directions.

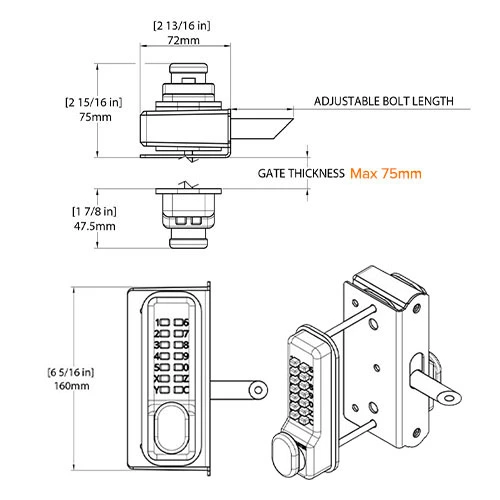

SuperLock Sandwich Digital Locks
(Sandwich SuperLock 2.0 is incoming - it is reversible meaning there is no more inwards/outwards opening or LH or RH. Stay tuned for that!)

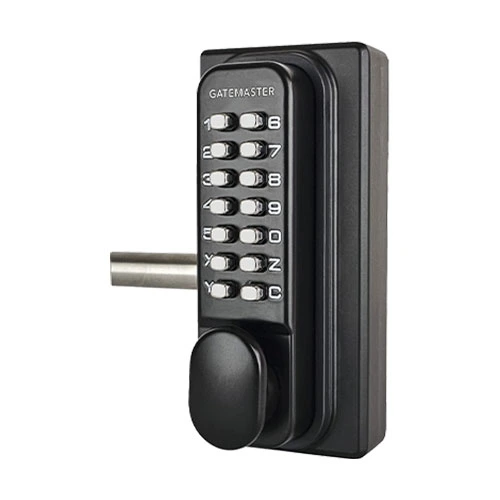

The Gatemaster SuperLock Surface Mounted Digital Lock represents the absolute pinnacle of slimline, high-performance perimeter security. The SuperLock uses an intelligent, front-and-back "sandwich mount" design that clamps directly onto the face of your gate frame. It’s the ultimate choice for architecturally designed perimeters, high-frequency commercial gates, and heavy-duty environments where a standard side-mount simply won't cut it.
We supply this premium range in four distinct variations to suit any architectural workflow: Single or Double Sided Keypads, with dedicated Left or Right Hand orientations. For the Single Sided Keypad Variation, there is an option for outwards opening gate as well.
- Max Adjustable 75mm Frame Capacity: Whether you are installing onto thick structural RHS steel posts, heavy composite privacy panels, or solid timber gate jambs, the SuperLock easily accommodates frame depths up to 75mm without requiring specialised modifications or long custom spindles. An extension kit is also available for wider frame sizes.
- Forgiving 20mm Latch Adjustment: Soil movement, heavy wind loads, and hinge settling can misalign standard locks over time. The SuperLock features a threaded stainless steel latch bolt that can be spun in and out by up to 20mm, allowing you to calibrate the perfect strike fitment instantly during installation or routine gate servicing.
- 20mm Bolt Throw: The latch bolt moves in and out up to 20mm when the handle is turned
- 100% Wireless, Battery-Free Reliability: Operating purely on internal mechanical components, this lock cuts out the need for expensive trenching, cabling, or ongoing battery replacements. Paired with a rugged, marine-grade finish, it is explicitly built to endure harsh Australian coastal environments and blistering summer heat.

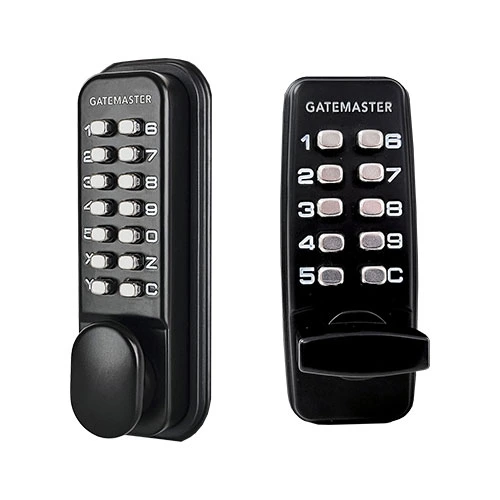

- Uncompromising 14-Button Keypad: While the entry-level SelectPro locks rely on basic 10-button layouts, the SuperLock features an upgraded 14-button mechanical interface. This drastically expands the mathematical code combinations, providing top-tier anti-vandal defense for schools, government yards, and secure commercial facilities.

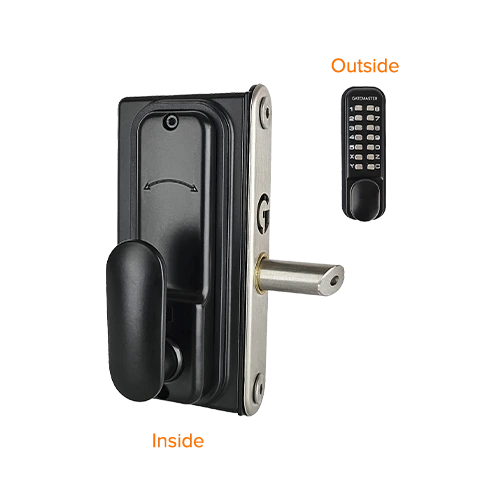

Single-Sided Keypad (Inwards Opening)
The Single-Sided Superlock features a durable mechanical keypad on the exterior and a free-exit lever handle on the interior. Designed for surface-mounted installation, it provides secure, keyless access from the outside while allowing fast and convenient exit from the inside without the need for a code. Its robust construction makes it suitable for residential, commercial, and industrial gates where reliable access control is required.
Single-Sided Keypad (Outwards Opening)
Designed for outward-opening gates, this surface-mounted Superlock features a mechanical keypad on the exterior and a free-exit lever handle on the interior. It provides secure, keyless entry while allowing fast and convenient exit without a code. Ideal for residential properties and private commercial areas where controlled entry is required but unrestricted exit is preferred.

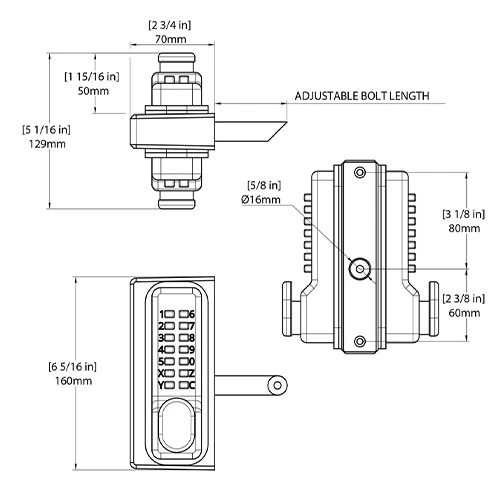

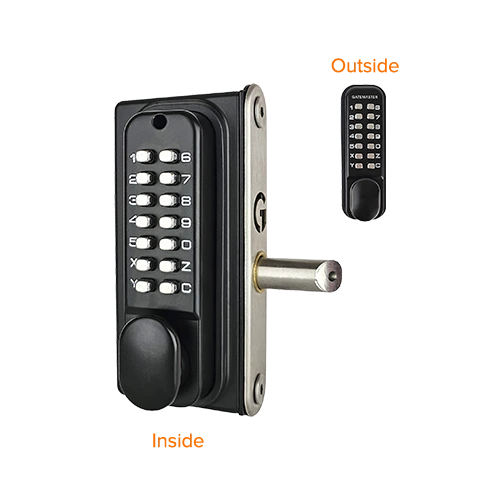

Double-Sided Keypad
Fitted with mechanical keypads on both sides, this surface-mounted Superlock provides secure, keyless access for both entry and exit. Unlike a single-sided lock, it prevents someone from reaching through the gaps of an open slatted or mesh gate to operate the inside lever, as a code is required from both directions. This makes it ideal for schools, childcare centres, shared pathways, apartment complexes, and other applications where controlled access is essential.
Sandwich - SelectPro vs SuperLock
|
|
SelectPro |
SuperLock |
|
Max Frame Width |
100mm |
75mm* |
|
Lock Body Width |
98mm |
72mm |
|
Keypad |
10 buttons |
14 buttons |
|
Outwards Swing |
N/A |
Available |
*Extension kit is required for thicker frame sizes

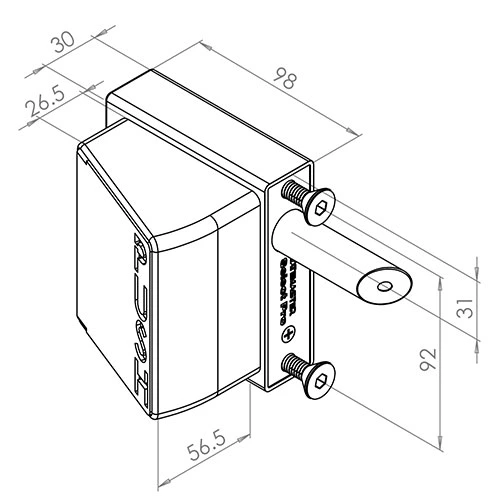

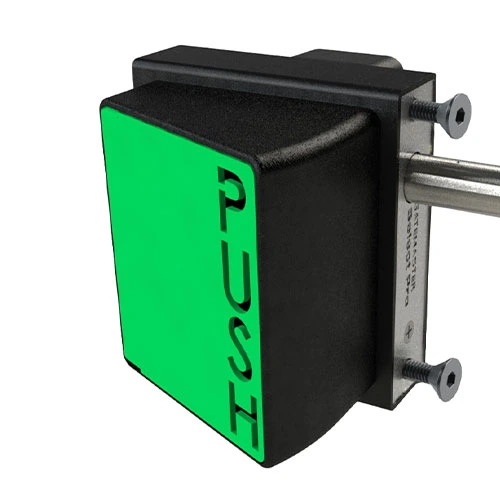

SelectPro Quick Exit Push Locks
Designed specifically to be bolted on the side of metal gate frames, the Gatemaster Bolt-On Quick Exit Lock provides high-security access control with an immediate, rapid exit solution. Featuring a secure mechanical keypad or standard key on the outside and an ergonomic exit push pad on the inside, it is ideal for commercial yards, school perimeters, and emergency escape routes.
The Quick Exit Push Locks come in 2 variations: Digital Code Lock & Standard Keyed Lock
-
22mm Bolt Adjustment: The solid stainless steel latch bolt is fully threaded, allowing you to manually spin it in and out to adjust its length
up to 20mm
- 20mm Bolt Throw: The latch bolt moves in and out up to 20mm when the handle is turned
-
No-Welding "3-Hole" Installation: Installing the lock requires zero complex fabrication.Simply drill three precise holes into your metal gate section and bolt the casing on directly with the high-strength stainless steel fixing fasteners provided.
-
Durable & Low Maintenance: The exterior keypad operates entirely on durable mechanical components, meaning it requires zero wiring, zero batteries, and functions flawlessly in demanding external Australian conditions.
-
Anti-Tamper Shroud Compatible: On open vertical-slat or chain mesh fencing, secure the unit with the optional Gatemaster Quick Exit Security Shroud. This prevents unauthorised intruders from executing a physical "reach-through" to press the internal push pad from the wrong side.

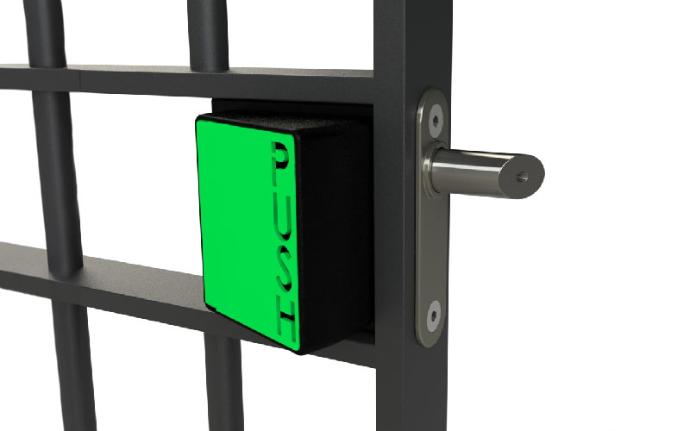

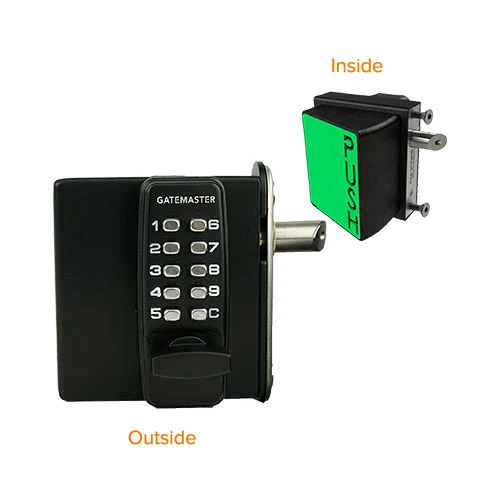

Quick Exit Digital Push Locks
The Digital Quick Exit Push Lock combines secure keyless entry with fast, convenient exit. Featuring a mechanical keypad on the outside and a large push pad on the inside, it allows authorised users to enter using a code while providing immediate exit with a simple push. Ideal for residential, commercial, and high-traffic areas where controlled access and quick emergency egress are required.
Frame Size 10-30mm:
Left Hand
Right Hand
Frame Size 40-60mm:
Left Hand
Right Hand

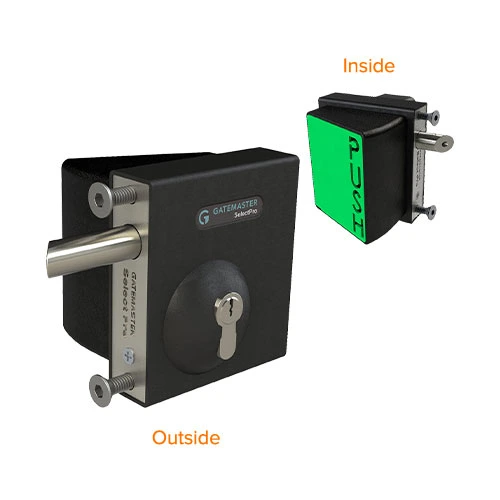

Quick Exit Key Push Locks
The traditional Key Quick Exit Push Lock provides secure keyed access from the outside with a quick and easy exit solution from the inside. Featuring a key-operated locking mechanism and a large internal push pad, it allows users to exit instantly without needing a key. A reliable choice for residential and commercial gates where secure entry and straightforward exit are required.
Frame Size 10-30mm:
Left Hand
Right Hand
Frame Size 40-60mm:
Left Hand
Right Hand

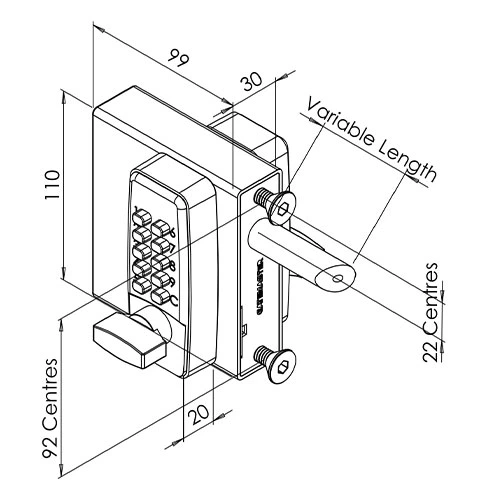

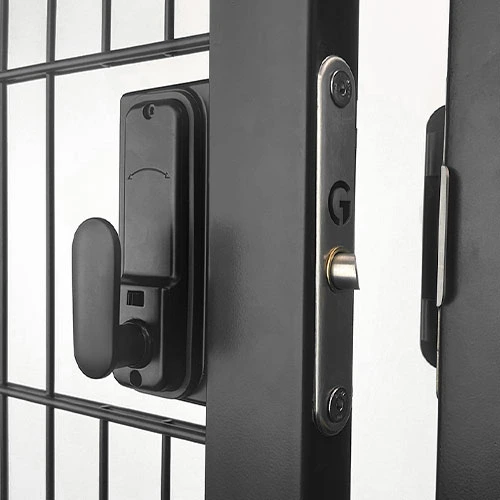

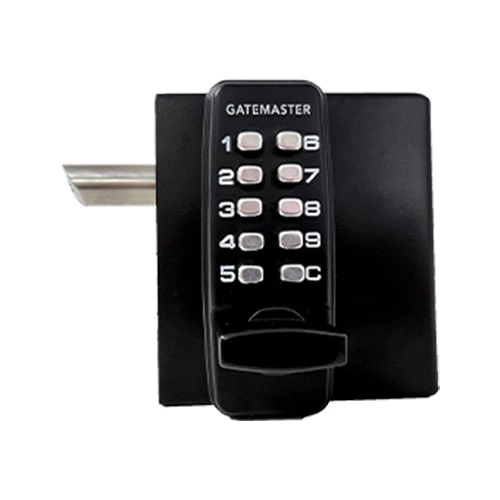

SelectPro Side-Mount Digital Locks
Specifically engineered to clamp flush on the edge of square or rectangular hollow metal gate sections, this side-mount configuration drops neatly into the inner side of the gate frame. It provides a keyless, low-profile security barrier that is perfect for light commercial properties, residential side gates, and community utility yards.
- 20mm Adjustable Latch: The solid stainless steel latch bolt features a fully threaded core that allows for up to 20mm of length adjustment. You can adjust this by spinning the threaded bolt in and out and lock it back with the grub screw.
- 20mm Bolt Throw: The latch bolt moves in and out up to 20mm when the handle is turned.
- Optimal Security: The standard SelectPro keypad features a 10-button interface (9 numbers and 1 letter), offering reliable, optimal perimeter security.
-
Drill Three Holes: Use a template to drill two mounting holes for the heavy-duty fixing bolts and one center hole for the latch bolt directly through the side of the gate frame.
- Durable & Low Maintenance: The exterior keypad operates entirely on durable mechanical components, meaning it requires zero wiring, zero batteries, and functions flawlessly in demanding external Australian conditions.

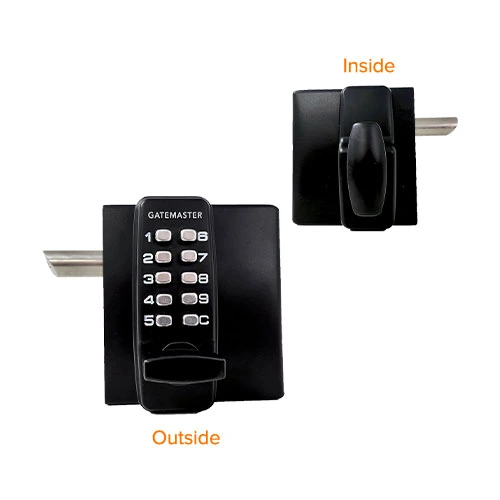

SelectPro Single-Sided Keypad Lock
The Single-Sided Keypad SelectPro features a robust mechanical keypad on the outside and a free-exit lever handle on the inside. Its single-sided keypad configuration delivers code-controlled entry while allowing users to exit quickly and easily with a lever.
Frame Size 40-60mm:
Left Hand
Right Hand

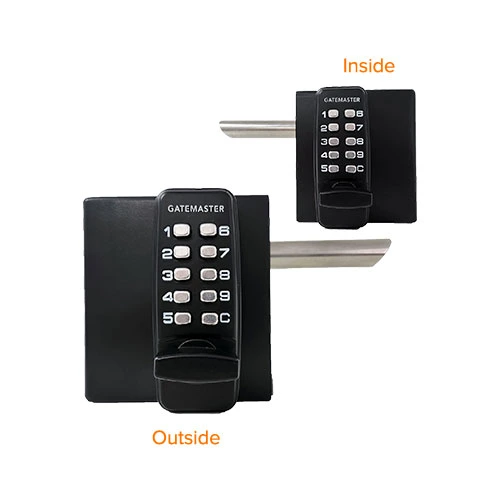

SelectPro Double-Sided Keypad Lock
The SelectPro Side Mount Double-Sided Keypad Lock features mechanical keypads on both sides, providing secure, keyless access for both entry and exit. Designed for side-mounted installation, it prevents unauthorised access by requiring a code from either direction, making it an ideal solution for schools, childcare centres, apartment complexes, shared accessways, and other high-security gate applications without the need of electricity.
Coming Soon

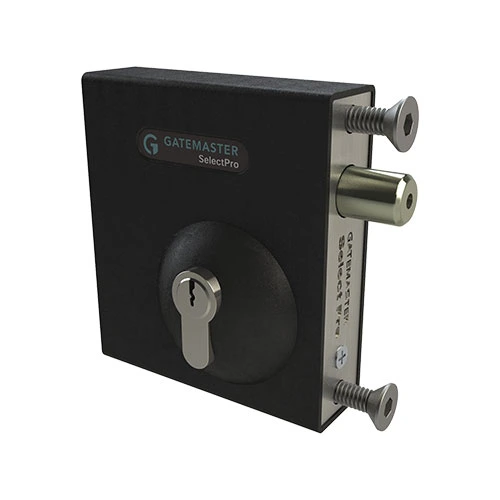

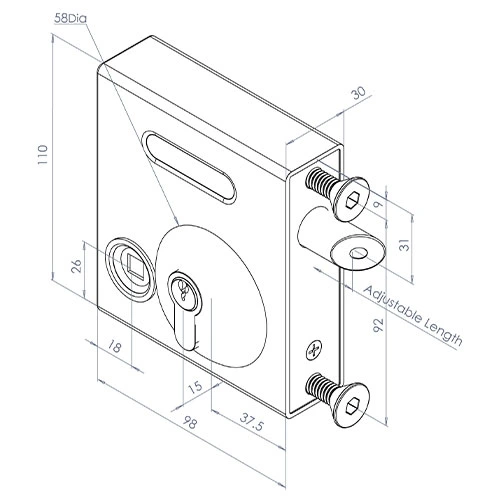

SelectPro Side-Mount Locks
Designed to clamp flush onto the edge of square or rectangular hollow metal gate sections, the SelectPro Side-Mount Keyed Lock fits neatly within the gate frame for a clean, low-profile installation. Designed for residential, commercial, and industrial applications, it provides secure, reliable keyed access with a durable mechanical locking system.
This lock comes in 3 variations: Handle-less, Handle-Only, and Handle + Key.
- 20mm Adjustable Latch: The solid stainless steel latch bolt features a fully threaded core, allowing up to 20mm of length adjustment for precise alignment. Simply adjust the bolt and secure it with the grub screw.
- 20mm Bolt Throw: The latch bolt moves in and out up to 20mm when the handle is turned.
- Traditional Keyed Security: Features a robust key-operated cylinder for dependable, controlled access without the need for batteries or electronics.
-
Drill Three Holes: Use a template to drill two mounting holes for the heavy-duty fixing bolts and one center hole for the latch bolt directly through the side of the gate frame.
- Durable & Low Maintenance: The exterior keypad operates entirely on durable mechanical components, meaning it requires zero wiring, zero batteries, and functions flawlessly in demanding external Australian conditions.
SelectPro Side Mount Handle-less
The SelectPro Handle-Less Lock is designed for gates that require automatic security every time it is shut. Once the gate closes, the latch engages automatically and can only be released using a key from either side, ensuring the gate remains securely locked at all times.
Frame Size 10-30mm:

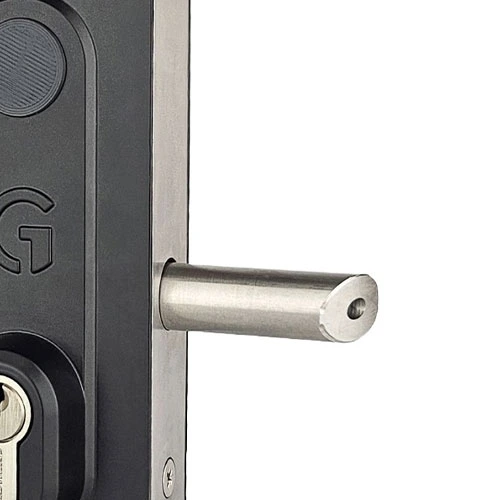

Standard Latch
Dead Bolt
Frame Size 40-60mm:
Standard Latch
Dead Bolt

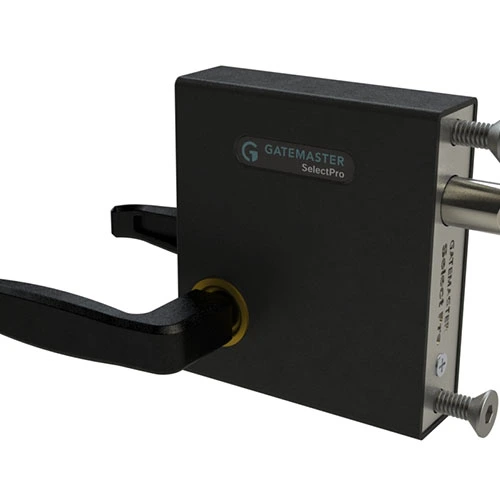

SelectPro Side Mount Handle-Only (Not Lockable)
The SelectPro Handle-Only Lock is designed for passageways where free access is required and locking is not necessary. Featuring a simple handle on both sides, it provides smooth, convenient operation while allowing unrestricted entry and exit. Ideal for internal gates, garden pathways, and other non-secure access points.
Frame Size 10-30mm:
Lever Handle

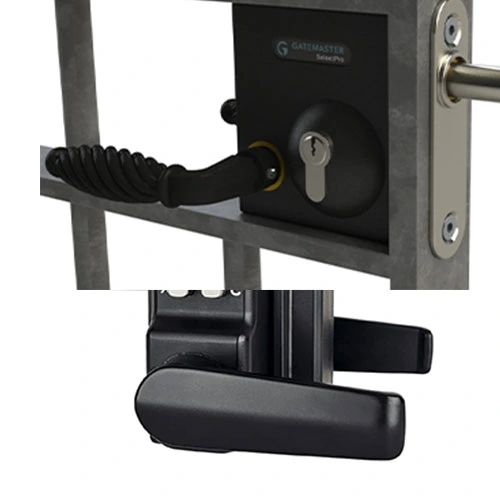

Traditional Handle
Frame Size 40-60mm:
Lever Handle
Traditional Handle

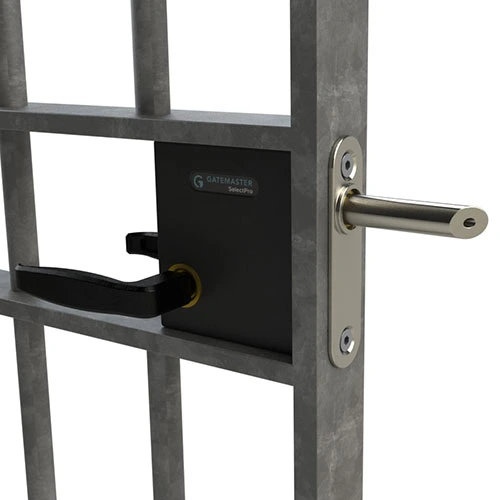

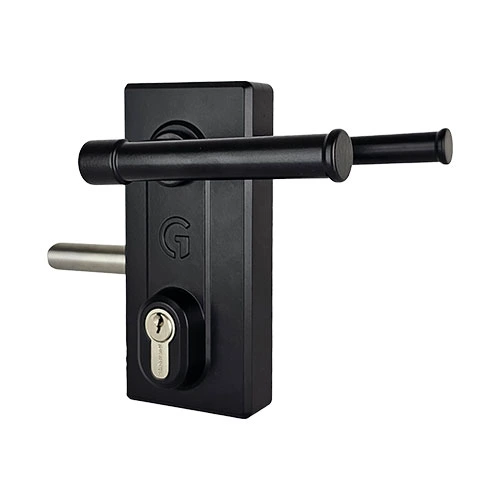

SelectPro Side Mount Handle + Key
The SelectPro Handle + Key Gate Lock combines the convenience of a lever handle with the security of a keyed lock, making it a versatile solution for almost any gate application. Use the handle for everyday access, then lock or unlock the gate with a key whenever security is required. Offering the best of both worlds, it’s ideal for residential, commercial, and industrial gates where flexibility, convenience, and reliable security are equally important.
Frame Size 10-30mm:
Lever Handle
Traditional Handle
Frame Size 40-60mm:
Lever Handle
Traditional Handle

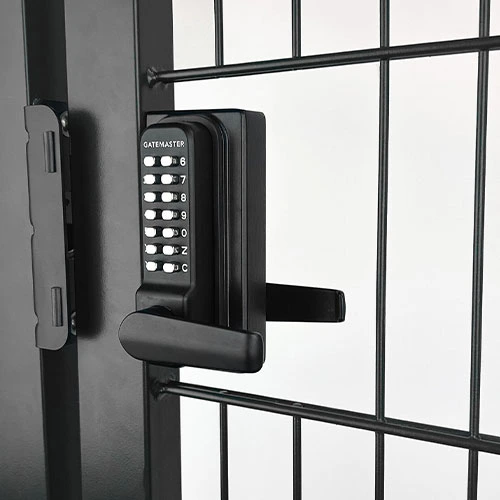

SuperLock 2.0 Side-Mount Digital Locks
When working with metal gates fabricated from square hollow sections (SHS) or rectangular hollow sections (RHS), the Gatemaster SuperLock 2.0 Side Bolt-On Lock delivers an ultra-slim, flush, and incredibly clean locking solution. Unlike surface-mounted or sandwich-style setups, this side-mount configuration is engineered to sit directly on the inner side of the gate frame. It provides a flush, integrated profile that keeps your perimeter looking sharp. Moreover, the SuperLock 2.0 is now reversible; hence, there are no more Left-Hand or Right-Hard variations.
The SuperLock 2.0 Side-Mount Locks come in 2 main variations: Digital Code Lock & Standard Keyed Lock
- 20mm Adjustable Latch: The solid stainless steel latch bolt features a fully threaded core that allows for up to 20mm of length adjustment. You can adjust this by spinning the threaded bolt in and out and lock it back with the grub screw.
- 20mm Bolt Throw: The latch bolt moves in and out up to 20mm when the handle is turned
-
Drill Three Holes: Use a template to drill two mounting holes for the heavy-duty fixing bolts and one center hole for the latch bolt directly through the side of the gate frame.
- Durable & Low Maintenance: The exterior keypad operates entirely on durable mechanical components, meaning it requires zero wiring, zero batteries, and functions flawlessly in demanding external Australian conditions.

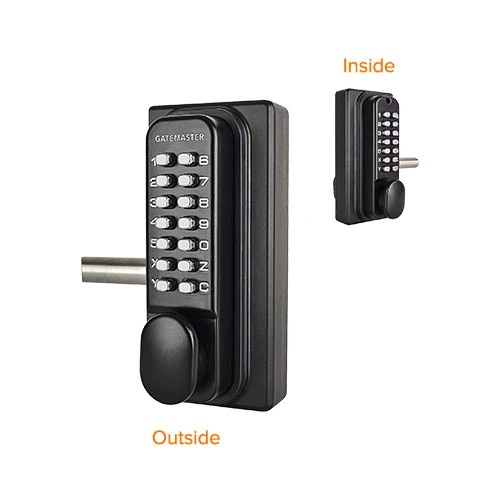

SuperLock 2.0 Side-Mount Double-Sided Keypad
The Gatemaster Superlock 2.0 Side-Mount Double-Sided Keypad provides secure, keyless access from both sides of the gate using durable mechanical keypads. Its side-mounted design sits neatly within the gate frame for a clean, low-profile installation while requiring a code for both entry and exit. By eliminating the internal free-exit handle, it prevents intruders from reaching through open slatted or mesh gates to operate the lock, making it an ideal choice for schools, childcare centres, apartment complexes, shared accessways, and other high-security applications. Reversible configuration allows for both LH and RH installation.
Frame Size 10-30mm:

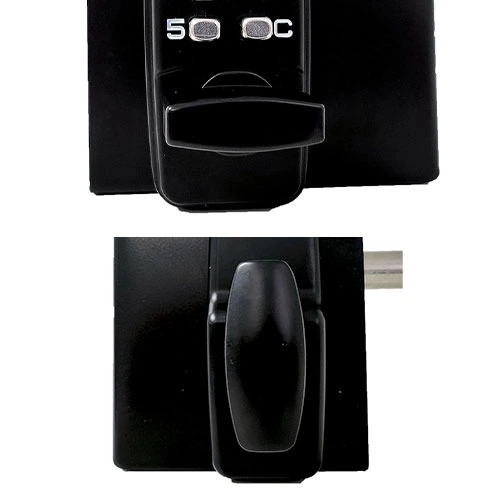

Knob Handle
Lever Handle (SuperLock 1.0)
Frame Size 40-60mm:
Knob Handle
Delta Handle

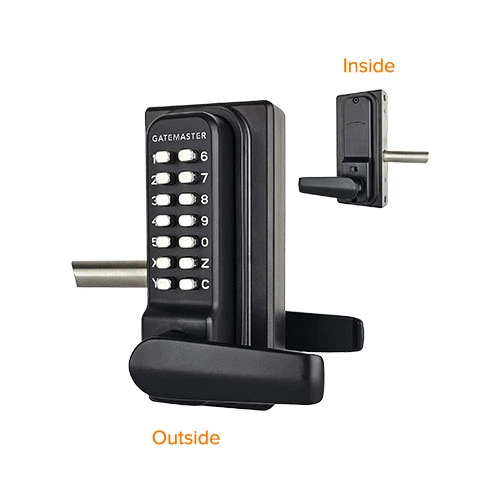

SuperLock 2.0 Side-Mount Single-Sided Keypad
The Gatemaster Superlock Side-Mount Single-Sided Keypad features a durable mechanical keypad on the outside and a free-exit handle on the inside, providing secure, keyless entry with convenient exit. Its side-mounted design fits neatly within the gate frame for a clean, low-profile installation, making it ideal for residential, commercial, and industrial gates where controlled access is required while allowing unrestricted exit.
Frame Size 10-30mm:
Knob Handle
Frame Size 40-60mm:
Knob Handle
Delta Handle

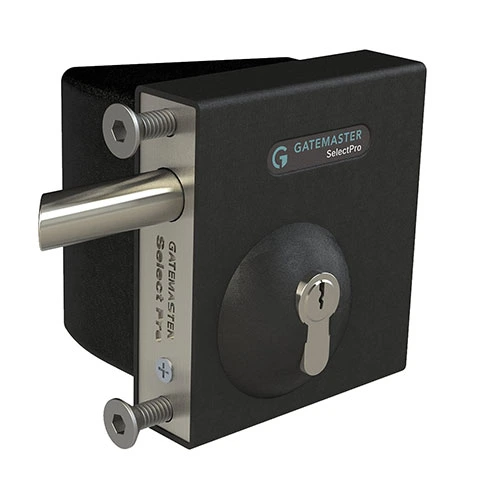

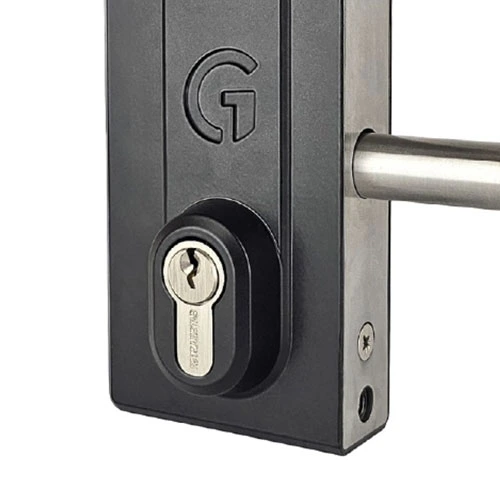

SuperLock 2.0 Side-Mount Keyed Lock
The SuperLock 2.0 Side-Mount Keyed Lock provides reliable keyed access in a compact, side-mounted design that fits neatly within the gate frame. Built for durability and everyday use, it offers secure key-operated entry while maintaining a clean, low-profile appearance. Suitable for residential, commercial, and industrial gates, it delivers dependable mechanical security without the need for batteries or wiring.
Frame Size 10-30mm:
Keyed Lock
Frame Size 40-60mm:
Keyed Lock
Weld-In Keyed Locks
Designed for steel gates, the Weld-In Long Throw Keylatch automatically locks every time the gate closes, ensuring the gate is always secure without needing to manually lock it. The concealed weld-in design provides a clean, integrated finish while delivering reliable, heavy-duty security for residential, commercial, and industrial applications.
- Long Throw Latchbolt: Stainless steel latchbolt extends up to 22mm into the gate post for enhanced security and reliable engagement.
- Weld-In Installation: Integrates directly into the gate frame for maximum strength and a clean, professional appearance.
- Adjustable Latchbolt: Easily adjusted for precise alignment and reversible for both left- and right-handed gates.
- Galvanise or Powder Coat Ready: The lock case can be welded into the gate before finishing, with the internal mechanism fitted afterwards.
Weld-In Locks
Available in two locking options to suit different security requirements:
- Long Throw Keylatch: Features a slanted, auto-latching bolt that automatically engages when the gate closes, providing convenient everyday security without needing to lock the gate manually.

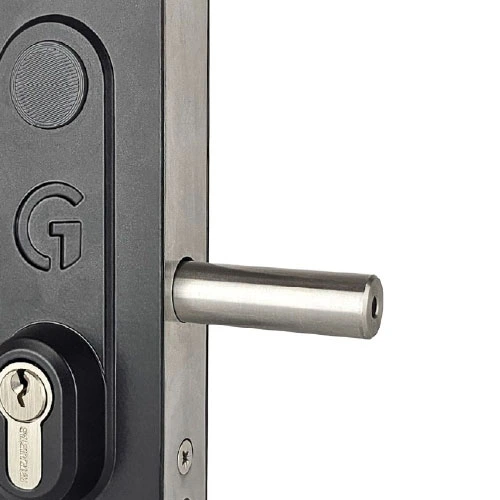

- Deadlock: Features a straight-cut deadbolt that is operated by a key. As it does not latch automatically, it offers a higher level of security where manual locking is preferred.
