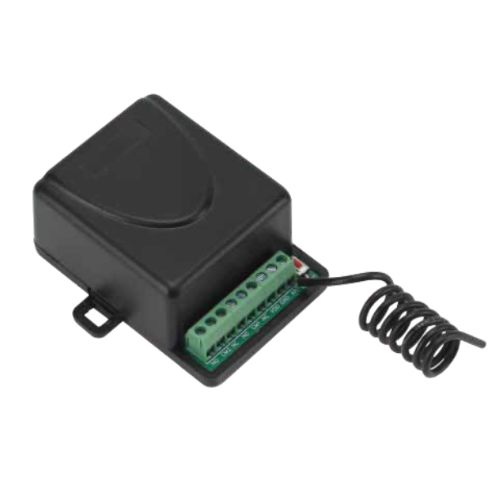

This receiver works with:
- Centsys Nova remotes [GM905] and [GM904]
- BFT Mitto (new version) remotes [GM849] and [GM847]
- TigerTech remotes
- Tiger wireless keypad [ET908]
Frequency - 433.92MHz.
Operating voltage - 12V DC-24V DC AC
Codes：Fixed / Learning / Rolling Code
Transmit
distance - 50-100m in open space. Open space means no any interference.
No walls, no doors, no trees or any other obstructions. Interference
like garage door or brick wall can reduce remote control range
significantly.
1 receiver can store 200pcs of remote control
Easy to use:
Relay 1 Momentary Mode programming
Press once P1 button (the learning key P1 on the receiver board), The LED lights up for 1 second, then goes out and lights up again. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button
Relay 2 Momentary Mode programming
Pressing 2 times P1 button (the learning key P1 on the receiver board), The LED flashing 2 times. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button
Relay 1 self-locking Mode programming
Pressing 3 times P1 button (the learning key P1 on the receiver board), The LED flashing 3 times. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button
Relay 2 self-locking Mode programming
Pressing 4 times P1 button (the learning key P1 on the receiver board), The LED flashing 4 times. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button
